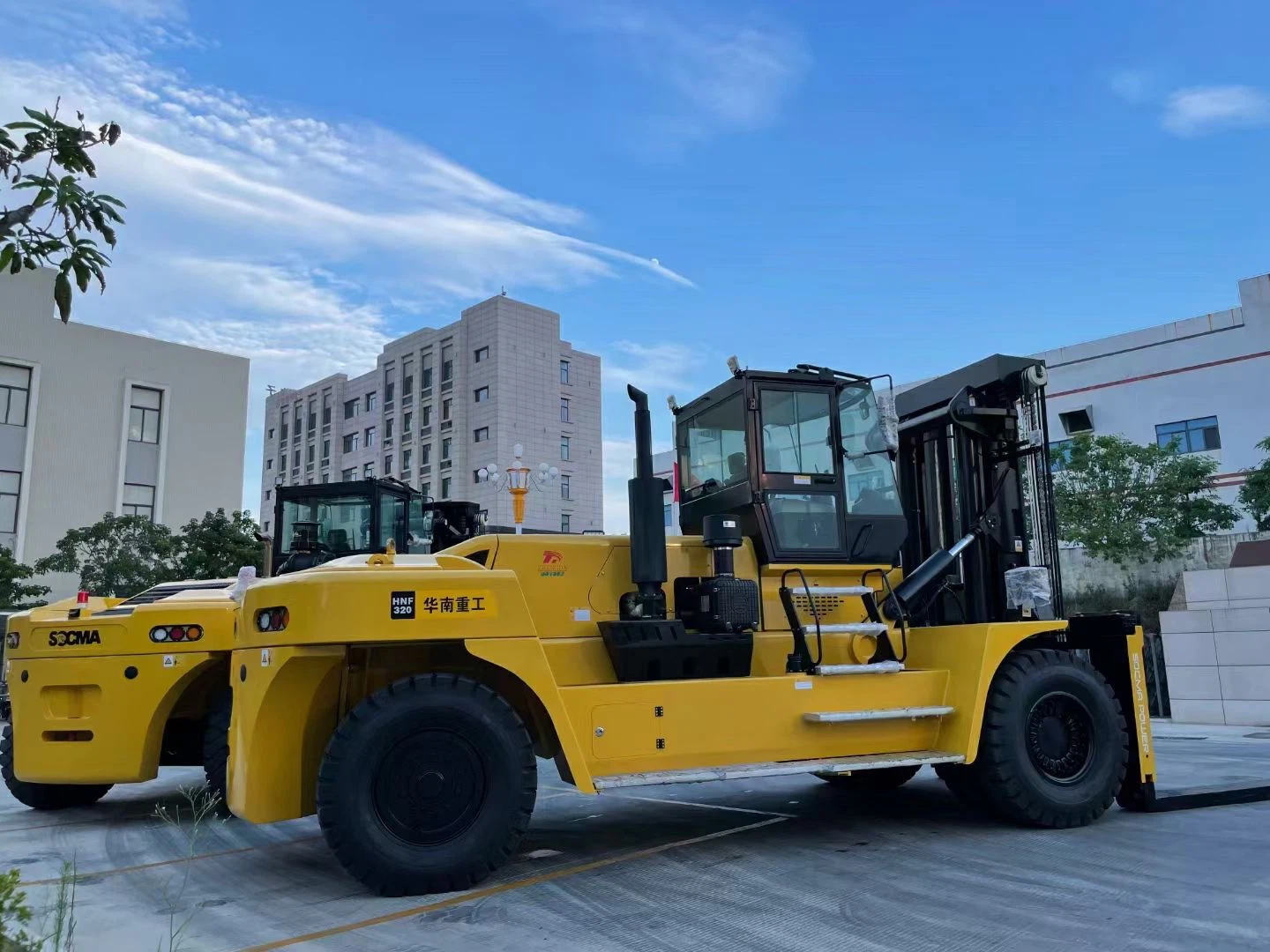

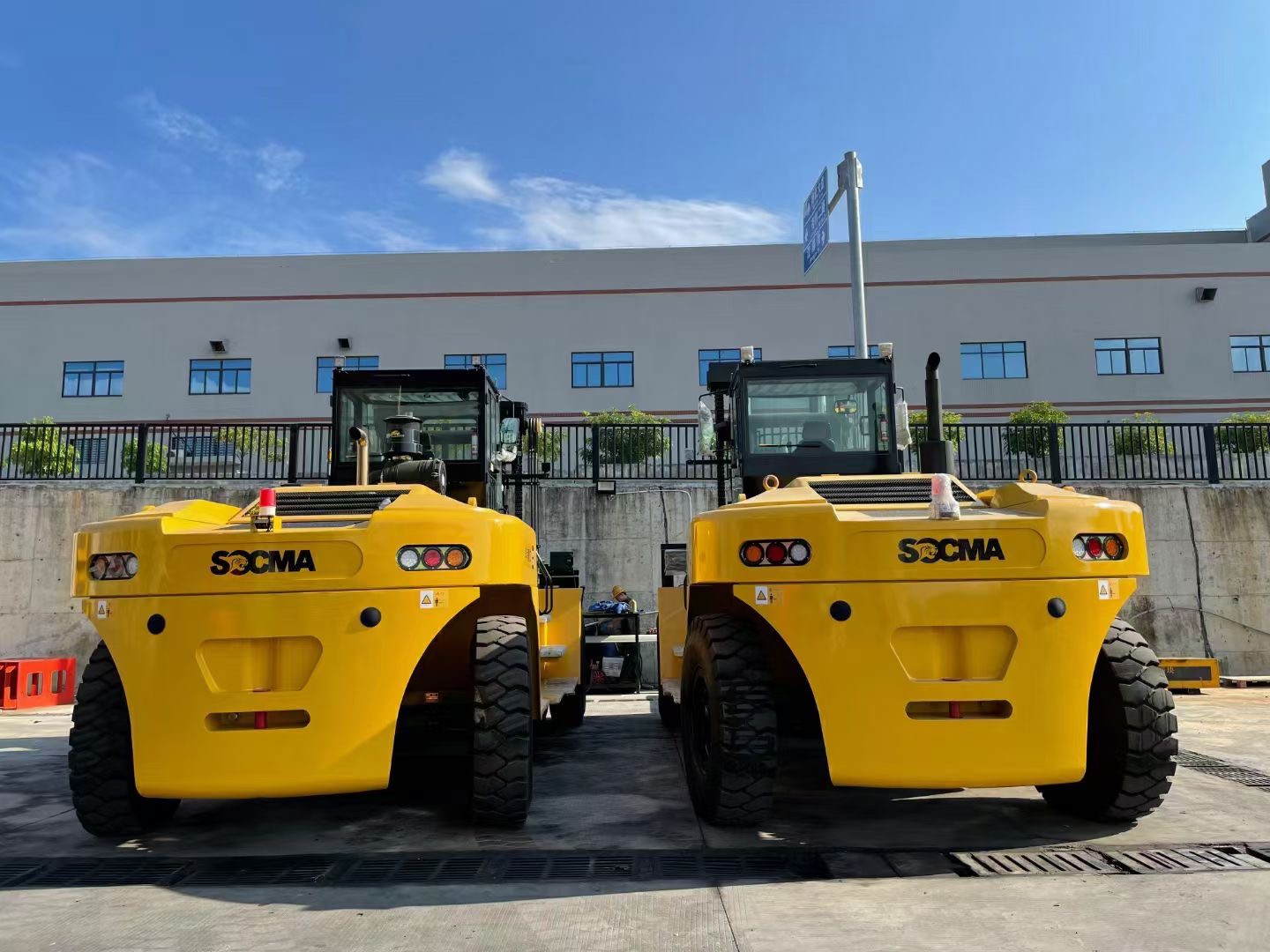

35t Diesel Forklift HNF350
SOCMA 35ton forklift HNF350
|
Configuration |
Model |
Unit |
CPCD350 |
|
Vehicle configuration |
HNF-350 |
||
|
Character |
Rated Capacity |
t |
35 |
|
Load Centre |
mm |
1250 |
|
|
Weight |
Operation Weight |
kg |
43000 |
|
Chassis |
Tyre no. |
|
4/2 |
|
Tyre, front |
|
4X16.00-25/32PR |
|
|
Tyre, rear |
|
2X16.00-25/32PR |
|
|
Wheels, numbers front/rear (x=driving wheel) |
|
4×/2 |
|
|
Wheel track, front |
mm |
2400 |
|
|
Wheel track, rear |
mm |
2450 |
|
|
Basic dimension |
Mast Tilt Angle (front/rear) |
° |
6/12 |
|
Mast height (fork lowered) |
mm |
4310 |
|
|
Lifting height |
mm |
4000 |
|
|
Mast height (fork lift) |
mm |
5760 |
|
|
Overall length (with fork) |
mm |
9700 |
|
|
Overall width |
mm |
3320 |
|
|
Fork size |
mm |
125x340x2440 |
|
|
Carrier width |
mm |
3100 |
|
|
Min. ground clearance-mast, full loaded |
mm |
400 |
|
|
Min. ground clearance-center of wheel base |
mm |
460 |
|
|
Min. turning radius |
mm |
7260 |
|
|
Parameter |
Speed (full loaded/without load) |
km/h |
25/28 |
|
Max. lifting speed (full loaded/without load) |
m/s |
260/280 |
|
|
Gradeability (full loaded/without load) |
% |
20/20 |
|
|
Service brake |
|
Hydraulic clamp disc |
|
|
Engine |
Brand |
|
WP10G240E341 |
|
Rated power |
KW |
178 |
|
|
Rated rotor speed |
min-1 |
2200 |
|
|
No. of Cylinder |
|
6 |
