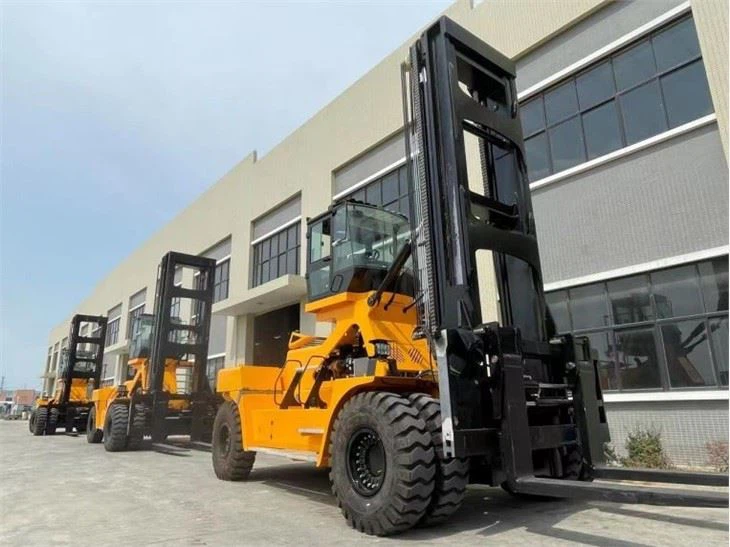

32 Ton Heavy Duty Forklift Same As Linde TCM HYUNDAI
Customize lifting height and mast stage
suitable for port and containers' handling and stack
lifting height 8.1 meters, can stack 4 layers
32 tons forklift truck foreign trade export 32 tons forklift truck model Dockyard 32 tons forklift truck weight
The safety design of the heavy 32-ton forklift truck shall ensure the safety of the driver, the cargo, and the forklift truck itself. High-quality forklifts often take every detail and every possibility into account in safety design. Company HNF internal combustion balance heavy forklift, HNT
Telescopic boom forklift, HNE excavator, HNBZ slag picking truck, HNFC forklift crane have passed the product type test.
In 2011, HNF series internal combustion balanced forklift trucks obtained the special equipment manufacturing license of AQSIQ and passed the quadrennial annual examination in 2015 and 2019.
32 tons forklift (container forklift) the overall shape of the atmosphere, beautiful, smooth. Parts localization, standardization, accessories universal good easy to purchase, simple and fast daily maintenance.
| Configuration | Model | Unit | CPCD320 |
| Vehicle configuration | HNF-320 | ||
| Character | Rated Capacity | t | 32 |
| Load Center | mm | 1250 | |
| Wheelbase | mm | 4800 | |
| Weight | Operation Weight | kg | 41000 |
| Chassis | Tyre, front | 14.00-24-32PR | |
| Tyre, rear | 14.00-24-32PR | ||
| Tyres Qty. front/rear (x=driving wheel) | 4×/2 | ||
| Wheel tread, front | mm | 2420 | |
| Wheel tread, rear | mm | 2390 | |
| Basic dimension | Mast Tilt Angle (front/rear) | ° | 6/12 |
| Mast height (fork lowered) | mm | 3950 | |
| Mast lifting height | mm | 3500 | |
| Max. lifting height | mm | 5700 | |
| Height to head guard (height to cab) | mm | 3800 | |
| Overall length (with fork) | mm | 9590 | |
| Fork front vertical surface to the rear end of the vehicle | mm | 7150 | |
| Overall width | mm | 3200 | |
| Fork dimension | mm | 2440x320x110 | |
| Fork carrier width | mm | 3100 | |
| Mast Min. ground clearance, full loaded | mm | 350 | |
| Wheelbase center Min. ground clearance | mm | 410 | |
| Min. turning radius | mm | 7260 | |
| Parameter | Travel speed (full loaded/without load) | km/h | 24/28 |
| Max. lifting speed (full loaded/without load) | mm/s | 260/280 | |
| Max. lowering speed (full load/without load) | mm/s | 250/180 | |
| Traction | kN | 220 | |
| Gradeability (full loaded/without load) | % | 20/21 | |
| Driving brake | Hydraulic clamp disc | ||
| Engine | Brand | Weichai | |
| WO10G240E341 | |||
| Rated power | KW | 178 | |
| Rated rotor speed | min-1 | 2200 | |
| No. of Cylinder | 6 | ||
| Transmission gears (Front/rear) | 2/1 | ||
| Attachments working pressure | Mpa | 18 | |
| Attachments using oil amount | L/min | 80 | |
