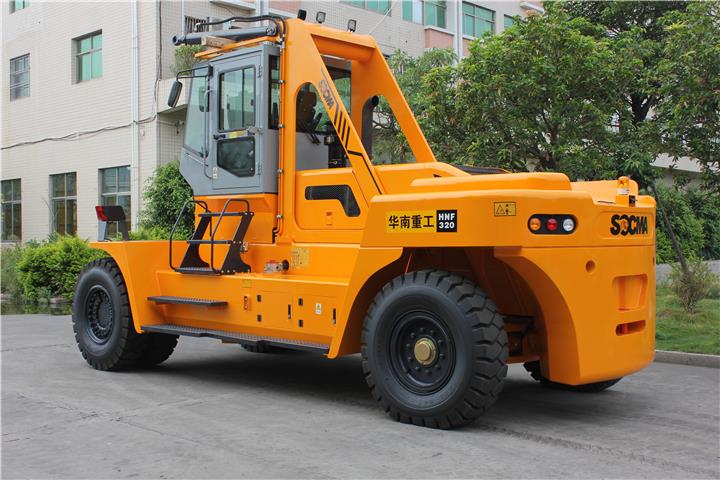

32 Ton Container Forklift
Load center:1250 mm
Operating weight: 41,000 kgs
Wheel base: 4,800 mm
1, rear axle by transverse hydraulic cylinder type steering, steering axle has compact structure, transmission angle is 70.5 °, help to reduce the resistance and reduce tire wear and improve the...
HNF-320
Rated load: 32,000 kgs
Load center:1250 mm
Operating weight: 41,000 kgs
Wheel base: 4,800 mm
1, rear axle by transverse hydraulic cylinder type steering, steering axle has compact structure, transmission angle is 70.5 °, help to reduce the resistance and reduce tire wear and improve the driving comfort.
2, use Hangchi, Sanchi planet type hydraulic power shift transmission, big traction in combined operating condition, the transmission system more reliable.
3, adopt double turbine hydraulic torque converter, stepless speed change, single lever control for the speed changing, easier for operation.
4, Variable speed control valve matched with neutral starter, the machine start more secure.
32 Ton Container Forklift maintenance 5
New forklift or forklift which stop to work long time, within 2 weeks after working, when lubricate the bearing, must use new oil to extrude old oil, and lubricate it more than twice, and should notice following points:
（1）Should clear away the dirt on the oil cover, oil plug and glib, prevent the dirt drop inside.
（2）When the grease gun is used to grease the lubricant, it should be pressed into the parts of each component and combined with extruding lubricant.
（3）Should change seasonal lubrication (engine oil etc) in summer or winter
Parameter of 32 Ton Container Forklift
Item | Item details | Unit | |
HNF-320 | |||
Features | Rated Load | Q（t） | 32 |
Load center | c（mm） | 1250 | |
Wheelbase | y（mm） | 4800 | |
Weight | Weight | kg | 40600 |
Chassis | Tyre Specs.:Front | 14.00-24-32PR | |
Tyre Specs.:Rear | 14.00-24-32PR | ||
Tyres Qty,front/rear(X-drive wheels) | 4\2 | ||
Wheel tread:Front | b10（mm） | 2420 | |
Wheel tread:Rear | b11（mm） | 2390 | |
Dimension | Mast/carriage tilt angle(front/rear) | Degree（°） | 6\12 |
Mast height(fork lowering) | h1（mm） | 3950 | |
Mast lifting height | h3（mm） | 3500 | |
Max.lifting height | h4（mm） | 5700 | |
Height to head guard(height to cab) | h6（mm） | 3800 | |
Overall height(with forks) | l1（mm） | 9590 | |
Fork front vertical surface to the rear end of the vehicle | l2（mm） | 7150 | |
Overall width | b1/b2（mm） | 3200 | |
Fork dimension | s/e（mm） | 2440X320X110 | |
Fork carriage width | b3（mm） | 3100 | |
Mast min ground clearance (with load) | m1（mm） | 350 | |
Wheelbase center min ground clearance(with load) | m2（mm） | 410 | |
Min.Turning radius | Wa（mm） | 7260 | |
Travel speed(with load/without load) | km/h | 24/28 | |
Performance | Max.lifting speed(with load/without load) | mm/s | 260/280 |
Max.Lowering speed(with load/without load) | mm/s | 250/180 | |
Traction | N | 22000 | |
Gradeablity(with load/without load) | ％ | 20/21 | |
Driving brake | Hydraulic clamp disc | ||
Engine brand/model | Optional one | Weichai engine | |
Engine | WO10G240E341 | ||
Optional two | Dongfeng Cummins | ||
QSC8.3-C260 | |||
Cylinder No. | 6 | ||
Others | Transmission gears(Front/rear) | 2\1 | |
Attachments working pressure | bar | 180 | |
Attachments using oil amount | l/min | 80 |
