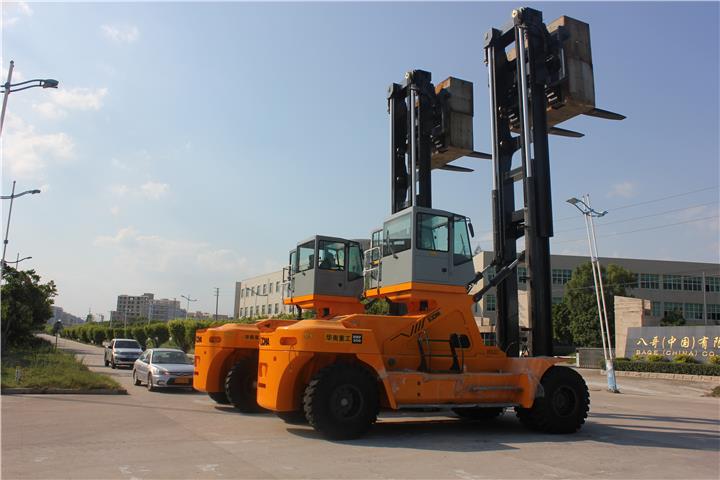

30 Ton Container Forklift 8.1m
mast Rated load: 30,000 kgs
Load center:1250 mm
Operating weight: 45,000 kgs
Wheel base: 4,800 mm
1, the whole machine is beautiful and smooth. Luxury wide view cabin, along with the skylight, low noise, good sealing 2, hydraulic load sensing steering system, rear steering...
HNF-300H
Duplex 8100mm mast
Rated load: 30,000 kgs
Load center:1250 mm
Operating weight: 45,000 kgs
Wheel base: 4,800 mm
1, the whole machine is beautiful and smooth. Luxury wide view cabin, along with the skylight, low noise, good sealing
2, hydraulic load sensing steering system, rear steering axle with small turning radius, flexible and light steering
3, adopt double turbine hydraulic torque converter, stepless speed change, single lever control for the speed changing, easier for operation.
4, using domestic high quality electrical components, maintenance-free battery, the wire resistance of flame retardant materials, reliable and durable. Cabin matched wiht fan, radios, air conditioner, reversing display, can match with weighting machine according to customers’ requirements.
5, front axle adopt heavy duty type driving axle, enlarge size of axle housing, hub and bearing, spiral bevel gear and wheel planetary wheel deceleration increasing twist, steel structure bridge shell support, increase the load capacity and service life.
30 Ton Container Forklift 8.1m Maintenance 4
1、 Inspect the brake pedal and hand brake, step on the brake pedal to check whether have non-normal blunt or jammed.
The acting force of hand brake level should be less 300N, confirm hand brake safe and reliable.
2、 Inspect belt,horn,lighting and instrument etc, check tightness of the belt whether meet the specification,if not, should adjust it. If have crack, should change it. horn,lighting and instrument should be normal and effective.
3、Wipe off the sediment of oil filter.
4、Lubrication for forklift
Parameter of 30 Ton Container Forklift 8.1m
Item | Item Details | Unit | |
HNF-300 | |||
Features | Rated Load | Q（t） | 30 |
Load center | c（mm） | 1250 | |
Wheelbase | y（mm） | 4800 | |
Weight | Weight | kg | 45000 |
Chassis | Tyre Specs.:Front | 16.00-25-32PR | |
Tyre Specs.:Rear | 16.00-25-32PR | ||
Tyres Qty,front/rear(X-drive wheels) | 4\2 | ||
Wheel tread:Front | b10（mm） | 2420 | |
Wheel tread:Rear | b11（mm） | 2390 | |
Dimension | Mast/carriage tilt angle(front/rear) | Degree（°） | 6\12 |
Mast height(fork lowering) | h1（mm） | 3950 | |
Mast lifting height | h3（mm） | 81000 | |
Max.lifting height | h4（mm） | 10520 | |
Height to head guard(height to cab) | h6（mm） | 4750 | |
Overall height(with forks) | l1（mm） | 9590 | |
Fork front vertical surface to the rear end of the vehicle | l2（mm） | 7500 | |
Overall width | b1/b2（mm） | 3800 | |
Fork dimension | s/e（mm） | 2440X320X110 | |
Fork carriage width | b3（mm） | 3100 | |
Mast min ground clearance(with load) | m1（mm） | 350 | |
Wheelbase center min ground clearance(with load) | m2（mm） | 410 | |
Min.Turning radius | Wa（mm） | 7260 | |
Travel speed(with load/without load) | km/h | 24/28 | |
Performance | Max.lifting speed(with load/without load) | mm/s | 260/280 |
Max.Lowering speed(with load/without load) | mm/s | 250/180 | |
Traction | N | 22000 | |
Gradeablity(with load/without load) | ％ | 20/21 | |
Driving brake | Hydraulic clamp disc | ||
Engine brand/model | Optional one | Weichai engine | |
Engine | WO10G240E341 | ||
Optional two | Dongfeng Cummins | ||
QSC8.3-C260 | |||
Cylinder No. | 6 | ||
Others | Transmission gears(Front/rear) | 2\1 | |
Attachments working pressure | bar | 180 | |
Attachments using oil amount | l/min | 80 |
