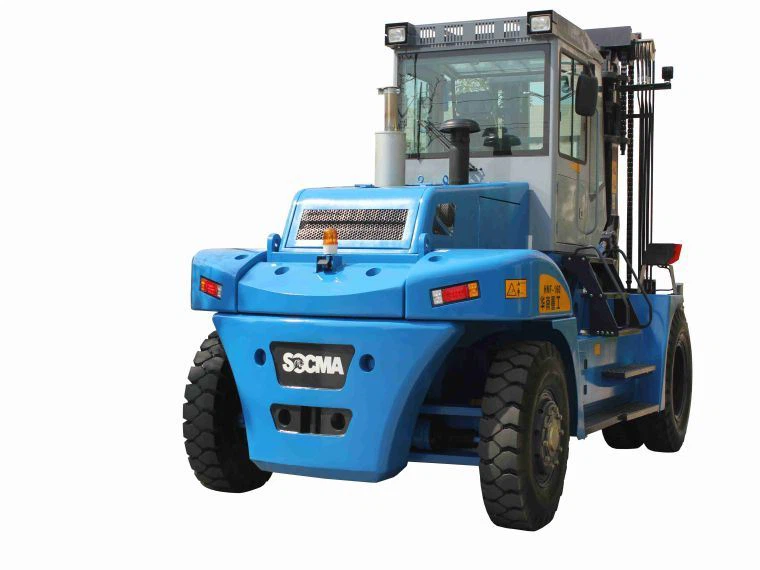

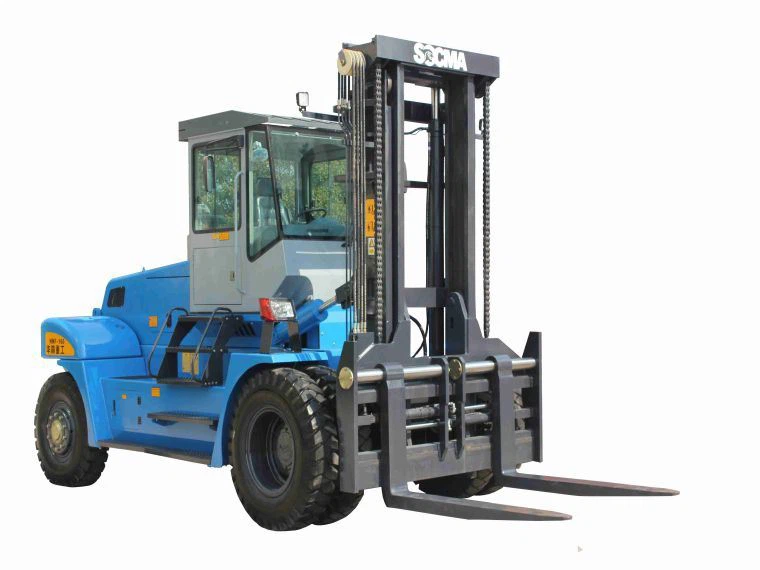

18 Ton Counterbalance Diesel Forklift Truck for Sale
Hydraulic transmission with electromagnetic valve, hydraulic fork positioner
Full cab with AC
Two stage wide view mast, 3500mm lifting height
Pneumatic tires (4/2)
Parameter-Standard Configuration
Configuration | Model | Unit | CPCD180 |
Vehicle configuration | HNF-180 | ||
Character | Rated Capacity | t | 18 |
Load Centre | mm | 900 | |
Weight | Operation Weight | kg | 25500 |
Chassis | Tyre no. | 4/2 | |
Tyre, front | 4X12.00-24/18PR | ||
Tyre, rear | 2X12.00-20/18PR | ||
Wheels, numbers front/rear (x=driving wheel) | 4×/2 | ||
Wheel track, front | mm | 2060 | |
Wheel track, rear | mm | 2330 | |
Basic dimension | Mast Tilt Angle (front/rear) | ° | 6/12 |
Mast height (fork lowered) | mm | 3675 | |
Lifting height | mm | 3500 | |
Mast height (fork lift) | mm | 5375 | |
Overall length (with fork) | mm | 7640 | |
Overall width | mm | 2750 | |
Fork size | mm | 100x220x1800 | |
Carrier width | mm | 2700 | |
Min. ground clearance-mast, full loaded | mm | 265 | |
Min. ground clearance-center of wheel base | mm | 325 | |
Min. turning radius | mm | 5800 | |
Parameter | Speed (full loaded/without load) | km/h | 26/30 |
Max. lifting speed (full loaded/without load) | m/s | 250/260 | |
Gradeability (full loaded/without load) | % | 20/21 | |
Service brake | Hydraulic clamp disc | ||
Engine | Brand | Yuchai YC6J175-T302 | |
Rated power | KW | 142 | |
Rated rotor speed | min-1 | 2200 | |
No. of Cylinder | 6 |
1. Every details is well-designed to guarantee the comfortability and safety. It is ergonomically designed. The combined effectiveness of control, monitor, aeration and chair improve the working efficiency for the operator. All direction has excellent vision.
2. The right mast can be chosen from our variety of series. 2-stage(with or without free lift) and 3-stages(with free lift) are available
3. The design of easy-maintenance point, make the inspection and service more convenient and easy.
4,Centralized control stick is with excellent inching performance, easy to realize millimeter-scale accurate control.
5. Through advanced FEA, kinematics and dynamics Simulation analysis and calculation, with accurate data support design base, Guarantee the rationality and excellent performance for mast and chassis structure. The overall unit is high reliability and stability.
