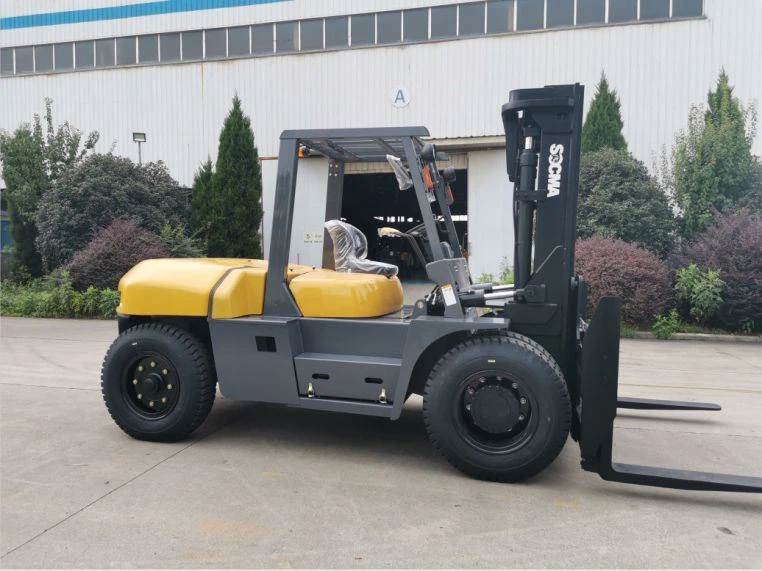

10Ton Diesel Counterbalance Forklift For Container Depot
, 600mm load center, 1200mm fork length
, 3000mm lifting height, two stage wide view mast
, Hydraulic transmission
,With hydraulic fork positioner
, Reverse alarm,Pneumatic tires (4/2)
Parameter-Standard Configuration
Configuration | Model | Unit | CPCD100 |
Vehicle configuration | HNF-100 | ||
Character | Rated Capacity | t | 10 |
Load Centre | mm | 600 | |
Weight | Operation Weight | kg | 14500 |
Chassis | Tyre no. | 4/2 | |
Tyre, front | 4×9.00-20-16PR | ||
Tyre, rear | 2×8.25-20-14PR | ||
Wheels, numbers front/rear (x=driving wheel) | 4×/2 | ||
Wheel track, front | mm | 1690 | |
Wheel track, rear | mm | 1960 | |
Basic dimension | Mast Tilt Angle (front/rear) | ° | 6/12 |
Mast height (fork lowered) | mm | 2850 | |
Lifting height | mm | 3000 | |
Mast height (fork lift) | mm | 4360 | |
Overall length (with fork) | mm | 5610 | |
Overall width | mm | 2250 | |
Fork size | mm | 80x180x1200 | |
Carrier width | mm | 2200 | |
Min. ground clearance-mast, full loaded | mm | 210 | |
Min. ground clearance-center of wheel base | mm | 300 | |
Min. turning radius | mm | 4200 | |
Parameter | Speed (full loaded/without load) | km/h | 21/25 |
Max. lifting speed (full loaded/without load) | m/s | 310/340 | |
Gradeability (full loaded/without load) | % | 25/40 | |
Service brake | Hydraulic clamp disc | ||
Engine | Brand | Yuchai YC6J125Z-T20 | |
Rated power | KW | 97 | |
Rated rotor speed | min-1 | 2200 | |
No. of Cylinder | 6 |
Standard equipped with domestic famous brand planetary transmission, automatic shift transmission can change gears very smoothly, reliable, safe, and easy to maintain.
Optional with electric transmission, electric control valve, German ZF transmission, and power shift fixed axis hydraulic transmission for forklifts.
Full hydraulic load sensing steering system, the rear steering axle has small turning radius, and the steering is light and dexterous.
