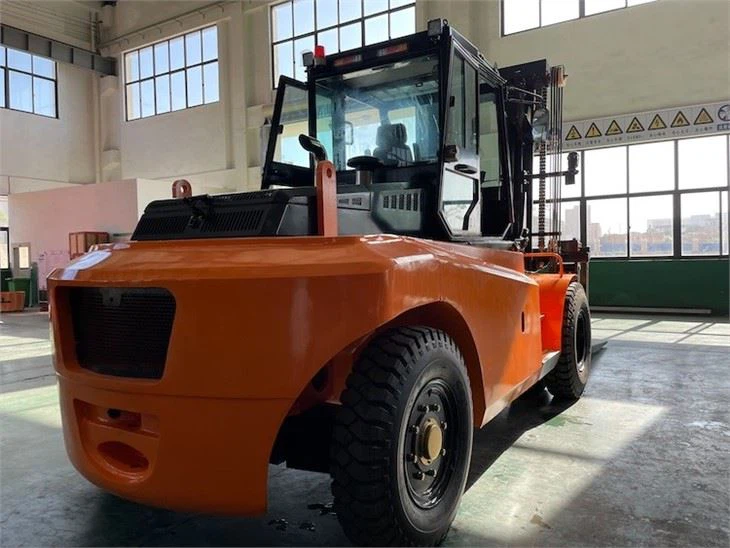

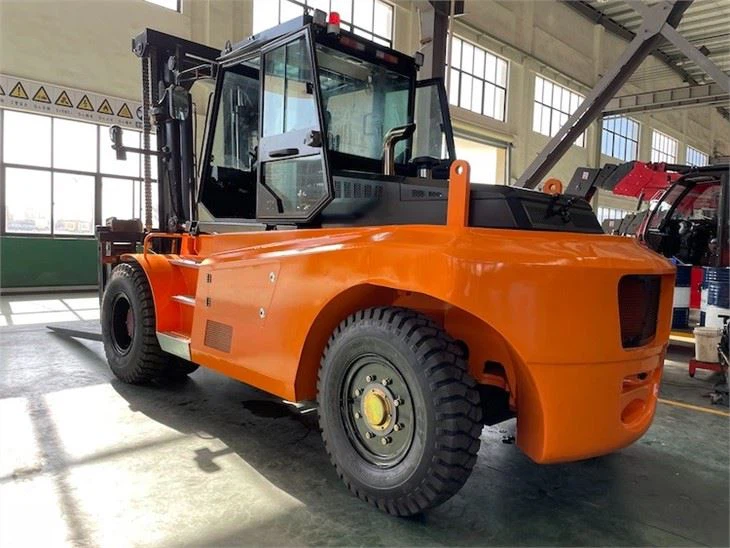

16 TON Forklift Compact Color Orange
FEATURES
New Transmission: Electro-controlled gearbox with 3 forward/3reverse auto-shift,high efficient and smooth gear shifting;
New style steering axle: One piece axle body, new rim installation structure, stronger & more reliable
New style Digital LCD instrument
Hydraulic drive radiator with better cooling performance and low noise, easily to access and daily check
Slide pad type fork shaft, more reliable
New style cabin: better sight; doors on both side, easier access; better air outlet position of air-conditioner
Move the air filter out of the engine house, easier access
SOCMA Heavy Forklift:
Introduction
1,Every details is well-designed to guarantee the comfortability and safety. It is ergonomically designed. The combined effectiveness of control, monitor, aeration and chair improve the working efficiency for the operator. All direction has excellent vision.
2, The right mast can be chosen from our variety of series. 2-stage(with or without free lift) and 3-stages(with free lift) are available
3, The design of easy-maintenance point, make the inspection and service more convenient and easy.
4,Centralized control stick is with excellent inching performance, easy to realize millimeter-scale accurate control.
5, Through advanced FEA, kinematics and dynamics Simulation analysis and calculation, with accurate data support design base, Guarantee the rationality and excellent performance for mast and chassis structure. The overall unit is high reliability and stability.
6, The overall unit adopts the lightweight design, with excellent fuel consumption savings.
an
PIC:John Chen
Email:John@socmachinery.com
WA:+86 18106938692
Parameter
| Technical Parameter | |||
| Item | HNF-160S | ||
| Features | Rated Load | Q（t） | 16 |
| Load center | c（mm） | 600 | |
| Wheelbase | y（mm） | 3300 | |
| Weight | Weight | kg | 19800 |
| Chassis | Tyre Specs.:Front | 12.00-20-18PR | |
| Tyre Specs.:Rear | 11.00-20-18PR | ||
| Tyres Qty,front/rear(X-drive wheels) | 4\2 | ||
| Wheel tread:Front | b10（mm） | 1740 | |
| Wheel tread:Rear | b11（mm） | 2013 | |
| Dimension | Mast/carriage tilt angle(front/rear) | Degree（°） | 6\12 |
| Mast height(fork lowering) | h1（mm） | 3140 | |
| Mast lifting height | h3（mm） | 3000 | |
| Max.lifting height | h4（mm） | 4640 | |
| Height to head guard(height to cab) | h6（mm） | 3040 | |
| Overall Length(with forks) | l1（mm） | 6355 | |
| Fork front vertical surface to the rear end of the vehicle | l2（mm） | 5155 | |
| Overall width | b1/b2（mm） | 2400 | |
| Fork Dimension | s/e（mm） | 1200*180*90 | |
| Fork carriage width | b3（mm） | 2200 | |
| Mast min ground clearance(with load) | m1（mm） | 225 | |
| Wheelbase center min ground clearance(with load) | m2（mm） | 350 | |
| Min.Turning radius | Wa（mm） | 4750 | |
| Travel speed(with load/without load) | km/h | 23/26 | |
| Performance | Max.lifting speed(with load/without load) | mm/s | 205/255 |
| Max.Lowering speed(with load/without load) | mm/s | 435/285 | |
| Traction | kN | 90 | |
| Grade ablity(with load/without load) | ％ | 20/22 | |
| Driving brake | Hydraulic clamp disc | ||
| Engine | Engine brand/model | Optional one | Yuchai engine |
| YC6J150-T301 6.494L 110KW 2200r/min | |||
| Optional two | Dongfeng Cummins | ||
| QSB4.5-C130 4.5L 97KW 2200r/min | |||
| Cylinder No. | 6\4 | ||
| Others | Transmission gears(Front/rear) | 2\2 | |
| Attachments working pressure | Mpa | 16 | |
| Attachments using oil amount | l/min | 40 | |
