15 Ton Diesel Heavy Forklift 4 Meter Lifting
Comminus engine
900 mm load center
Full-hydraulic steering
Full cab with AC
Fujian SOCMA Machinery Manufacture Co., Ltd. is one of the leading manufacturers and suppliers of 15 ton diesel heavy forklift 4 meter lifting in China. With a professional production team, we are able to meet the needs of the majority of our customers. Please rest assured to buy customized equipment at competitive price from our factory.
Heavy Duty 16 Ton Diesel Forklift Truck
I. CHARACTERISTIC
Engine:Low oil consumption, high-quality turbocharged engine, good power output, large torque reserves, strong power, energy efficiency, and environmental protection
Steering system: full-hydraulic steering with a transverse oil cylinder type steering bridge, flexible and light.
Transmission and torque converter: imported technology, dependable performance, easy maintenance, smooth transmission, and ease of use. Imported technology, dependable performance, easy maintenance, smooth transmission, and simple operation characterize the braking system.
Control system: pilot valve control device to increase job efficiency and reduce labor intensity for drivers. System stability is improved by using independent transmission oil and hydraulic oil cooling.
Fork: comes fitted with a hydraulic fork positioner, making operation simple and reducing driver workload.
Mast: internal-external box mast with innovative all-round roller bearings that improve lifting performance.
Cab: Full cab with air conditioning, heating, and a rear-view mirror.
II. Parameter-Standard Configuration
Configuration | Model | Unit | CPCD150 |
Vehicle configuration | HNF-150S | ||
Character | Rated Capacity | t | 15 |
Load Centre | mm | 600 | |
Weight | Operation Weight | kg | 18000 |
Chassis | Tyre no. | 4/2 | |
Tyre, front | 4×10.00-20-16PR | ||
Tyre, rear | 2×10.00-20-16PR | ||
Wheels, numbers front/rear (x=driving wheel) | 4×/2 | ||
Wheel track, front | mm | 1650 | |
Wheel track, rear | mm | 1970 | |
Basic dimension | Mast Tilt Angle (front/rear) | ° | 6/12 |
Mast height (fork lowered) | mm | 3100 | |
Lifting height | mm | 3000 | |
Mast height (fork lift) | mm | 4600 | |
Overall length (with fork) | mm | 6055 | |
Overall width | mm | 2250 | |
Fork size | mm | 90x180x1200 | |
Carrier width | mm | 2200 | |
Min. ground clearance-mast, full loaded | mm | 225 | |
Min. ground clearance-center of wheel base | mm | 350 | |
Min. turning radius | mm | 4450 | |
Parameter | Speed (full loaded/without load) | km/h | 23/26 |
Max. lifting speed (full loaded/without load) | m/s | 220/270 | |
Gradeability (full loaded/without load) | % | 20/22 | |
Service brake | Hydraulic clamp disc | ||
Engine | Brand | Yuchai YC6J150-T301 | |
Rated power | KW | 97 | |
Rated rotor speed | min-1 | 2200 | |
No. of Cylinder | 6 |
III. Reference Photos

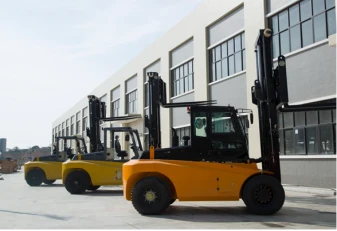

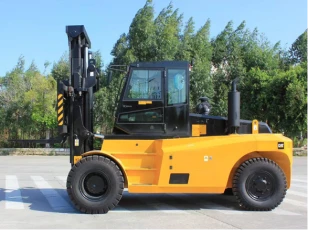

Machines：
|

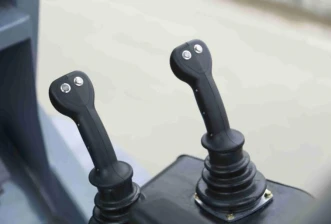

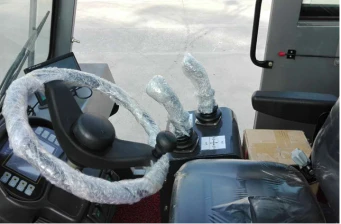

Details：
|

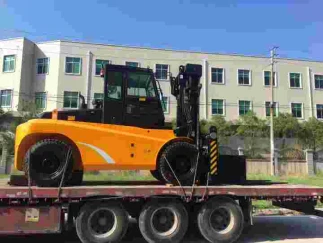

Delivery： |
|
