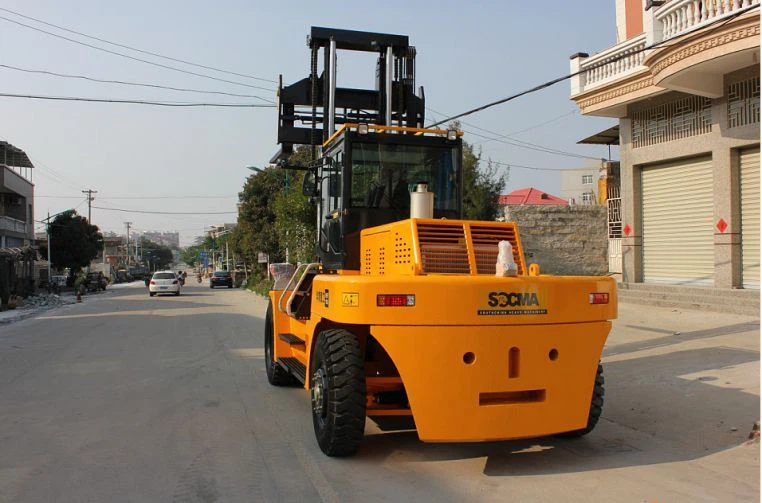

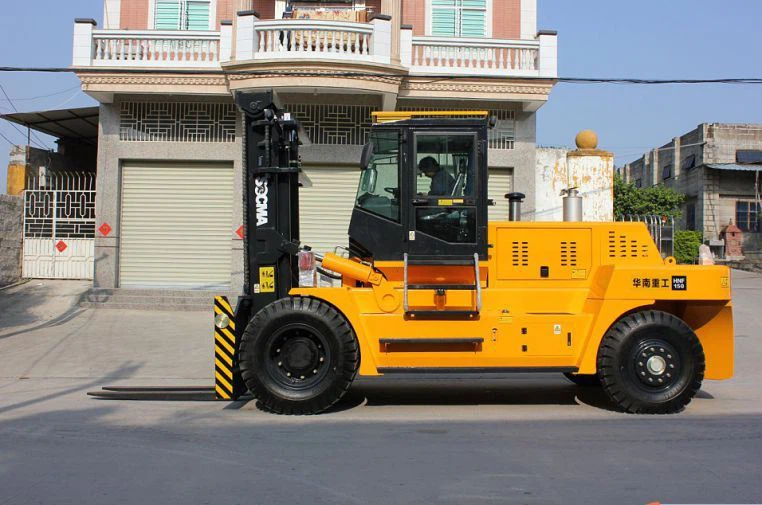

15 Ton Diesel Forklift For Container Port
3000mm lifting height, duplex mast
Yuchai engine
Hydraulic transmission with electromagnetic valve
Full cab with AC, Joystick control
With hydraulic fork positioner and side shifter
Pneumatic tires (4/2)
Configuration | Model | Unit | CPCD150 |
Vehicle configuration | HNF-150 | ||
Character | Rated Capacity | t | 15 |
Load Centre | mm | 900 | |
Weight | Operation Weight | kg | 24000 |
Chassis | Tyre no. | 4/2 | |
Tyre, front | 12.00-24-18PR | ||
Tyre, rear | 12.00-20-18PR | ||
Wheels, numbers front/rear (x=driving wheel) | 4×/2 | ||
Wheel track, front | mm | 2060 | |
Wheel track, rear | mm | 2330 | |
Basic dimension | Mast Tilt Angle (front/rear) | ° | 6/12 |
Mast height (fork lowered) | mm | 3625 | |
Lifting height | mm | 3500 | |
Mast height (fork lift) | mm | 5375 | |
Overall length (with fork) | mm | 7640 | |
Overall width | mm | 2700 | |
Fork size | mm | 100x220x1800 | |
Carrier width | mm | 2700 | |
Min. ground clearance-mast, full loaded | mm | 265 | |
Min. ground clearance-center of wheel base | mm | 325 | |
Min. turning radius | mm | 5800 | |
Parameter | Speed (full loaded/without load) | km/h | 26/30 |
Max. lifting speed (full loaded/without load) | m/s | 250/260 | |
Gradeability (full loaded/without load) | % | 20/22 | |
Service brake | Hydraulic clamp disc | ||
Engine | Brand | Yuchai YC6J175-T302 | |
No. of Cylinder | 6 |
Transmission & torque converter: imported technology, reliable performance, convenient maintenance, smooth transmission, and convenient operation.
Hydraulic system: double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance
Cooling system: adopt independent transmission oil and hydraulic oil cooling, increasing system stability
Fork: standard with hydraulic fork positioner, easy operation and reduce drivers’ labor intensity.
