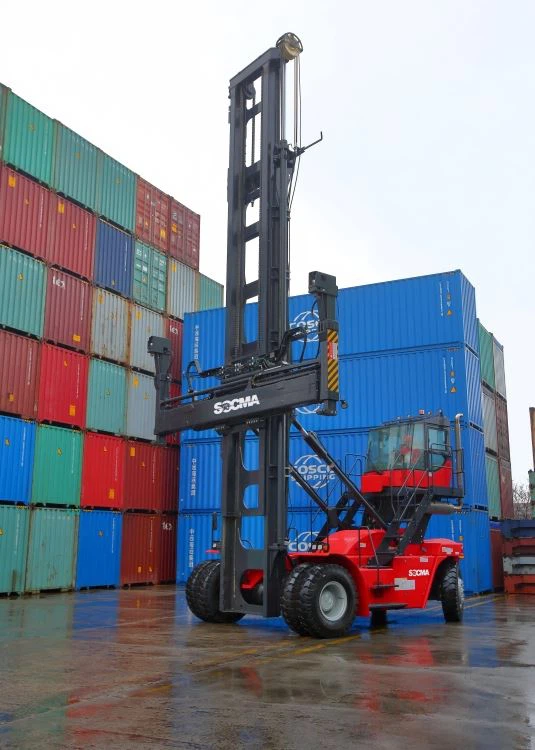

SOCMA 9t Empty Container Handler
1.Good reliability of the whole vehicle
2.Easy and comfortable to operate
3.Comprehensive safety tips
4.With wide adaptability and high efficiency
2.Easy and comfortable to operate
3.Comprehensive safety tips
4.With wide adaptability and high efficiency
Send Inquiry
Product Introduction
1. Empty Container Handler Introduction
Our Empty Container Handler is a high-efficiency, heavy-duty solution designed for ports, terminals, and logistics hubs. Built for speed and precision, it ensures smooth and safe handling of empty containers, maximizing productivity and reducing operational downtime. With advanced engineering and durable construction, it delivers reliable performance in demanding environments, optimizing container stacking and transport workflows.
2. Empty Container Handler Specifications
| PERFORMANCES | ||
| Model | SECH90C7 | |
| Load Capacity | kg | 9000 |
| Maximum stacking layer | 7 | |
| Lifting Speed, laden/unladen | m/s | 0.55/0.60 |
| Lowering Speed, laden/unladen | m/s | 0.60/0.55 |
| Traveling Speed, laden/unladen | km/h | 26/28 |
| Climbing ability, laden/unladen | % | 38/- |
| Tractive Force | kN | 157.5 |
| DIMENSIONS | ||
| Wheelbase | y(mm) | 4550 |
| Tilt angle (forward / backward) | α/β( / °) | 2/4 |
| Height of mast (extended) | h4(mm) | 19244 |
| Height of cabin | h6(mm) | 4735 |
| Height, operator's seat | h7(mm) | 3226 |
| Twistlock height, lowered | h13(mm) | 2290 |
| Maximum twistlock Height | h3(mm) | 18642 |
| Overall Length | l1(mm) | 6900 |
| Length to spreader face | l2(mm) | 6682 |
| Overall Width | b1/b2(mm) | 4120/2570 |
| Turning radius | Wa(mm) | 6000 |
| Wheel Tread, Front wheels | b10(mm) | 3280 |
| Wheel Tread, Rear wheels | b11(mm) | 2165 |
| WEIGHTS | ||
| Service Weight | kg | 40000 |
| ENGINE | ||
| Engine manufacturer/type | Cummins/QSC 8.3 | |
| Cylinder number/displacement | 6/8300 cm3 | |
| Rated power | 194Kw @ 2200 rpm | |
| Maximum torque | 1135NM @ 1350 rpm | |
| Rated current of alternator | 100A | |
| Battery | 24V (2x12/110) | |
| TRANSMISSION | ||
| Manufacturer/type | DANA13.7HR32334 | |
| Clutch - type | Torque Converter | |
| Transmission | Auto-shift/Interlock | |
| Gear number | 3F/3R | |
| BRAKE SYSTEM | ||
| Service brake | Wet-disc | |
| Parking brake | Brake enabled when power of | |
| DRIVE AXLE | ||
| Driver axle manufacturer | FUWA / Kessler | |
| Type | -/D81PL489 | |
| STEER AXLE | ||
| Steering axle manufacturer | OMCI/Italy | |
| Type | ASF | |
| Steering type-Single cylinder | Double action cylinder | |
| TYRES | ||
| Drive wheels | 14.00－24 28PR | |
| Steering wheels | 14.00－24 28PR | |
| Type | Pneumatic tyre | |
| Pressure | 10 bar | |
| Quantity, Front / Rear | 4/2 | |
