SOCMA Furnace Tending Vehicle

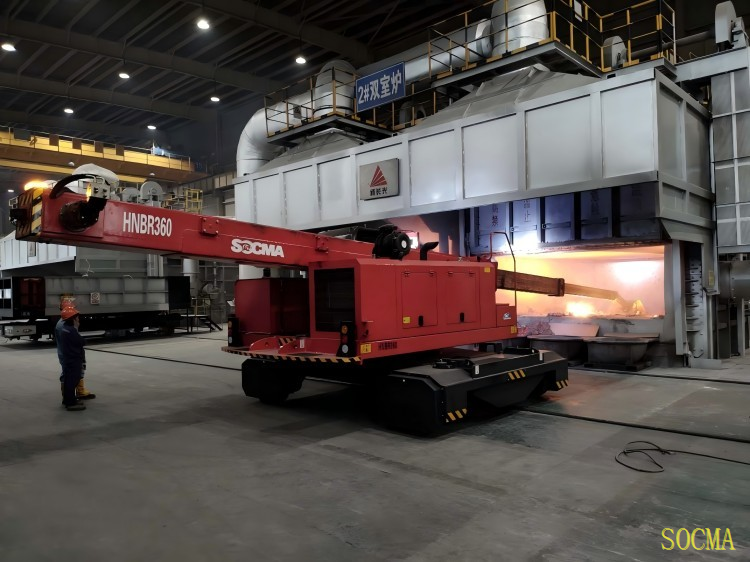

1.Furnace tending vehicle Introduction

SOCMA's furnace tending machine is a critical component in maintaining the efficiency and longevity of aluminum smelting furnaces. SOCMA's innovative design combines versatility with robust construction to meet the demanding requirements of modern smelting operations.

SOCMA's diverse range of equipment ensures that aluminum smelters can find the perfect solution for every stage of their production process, from raw material handling to finished product management.

2.Furnace tending vehicle Specifications

HNBZ8512

Item	Specifications
Overall width (The boom is fully retracted)	6000-8000mm (Customized)
Width	2340mm
Height	2360mm
Min.ground clearance	160mm
Max.extension	8600mm/9500mm/11300mm (Customized)
Range elevation	-12°-7° (Customized)
Truck weight	11000-12000kg
Slag removing force Level ≥ 90°	10kN
Slag removing force Vertical ≥ 90°	10kN
Engine	DongFeng Cummins QSB3.9-C1-31 / Perkins 1104D-44TA
Rated power	DongFeng Cummins 74KW/2200rpm / Perkins 74KW/2200rpm
Max.torque	330N.m/1400~1600rpm

HNBZ8512R

Item	Specifications
Boom arm extension range	6000mm-12000mm (Customized)
Stretching speed of boom arm	0-1000mm (Adjustable within the range)
Boom arm tilt angle	0-25°
Boom arm tilt speed	0-6°/s (Adjustable within the range)
Max.vertical extension range of Boom arm	750mm-1400mm (Customized)
Rotary range of upper structure	360°
Rotary speed of upper structure	0-12°/s (Adjustable within the range)
Maximum grade ability	10%
Full grade ability	＞10%
Max.travel speed	10Km/h
Max.speed of elevating	0-0.3m/s (Adjustable within the range)
Structure form of slag Boom arm	Single
Max.downard thrust	10-20kN (Programmable)
Max.horizental push/pull thrust	10-20kN (Programmable)
Min.ground clearance	150mm
Max.travel speed	5-10Km/h
Weight	16000kg
Length	6800-9500mm
Width	2500mm
Height	2800mm
Drive mode	Forward drive, Rear steer
Brake mode	Hydraulic brake



3.Furnace tending vehicle Applications

Model: SOCMA HNBZ8512 Furnace Tending Vehicle

Place/Use cases: Indonesia/Aluminum Smelting Factory

ALCA Metals was established in 1985 and is currently one of the largest integrated aluminum extrusion industries in Indonesia. Its facility is located at Deli Serdang (North Sumatera, Indonesia) in a total area of 50 Hectare, consisting of 3 billet furnaces & castings, 25 extrusion presses, dies production, anodizing, powder coating, and OEM/fabrication facilities. Its commitment to high quality & best service has led to achieving the Primaniyarta Export Award from the Indonesia Government for 3 consecutive years (2020, 2021 & 2022) as a national best exporter.
