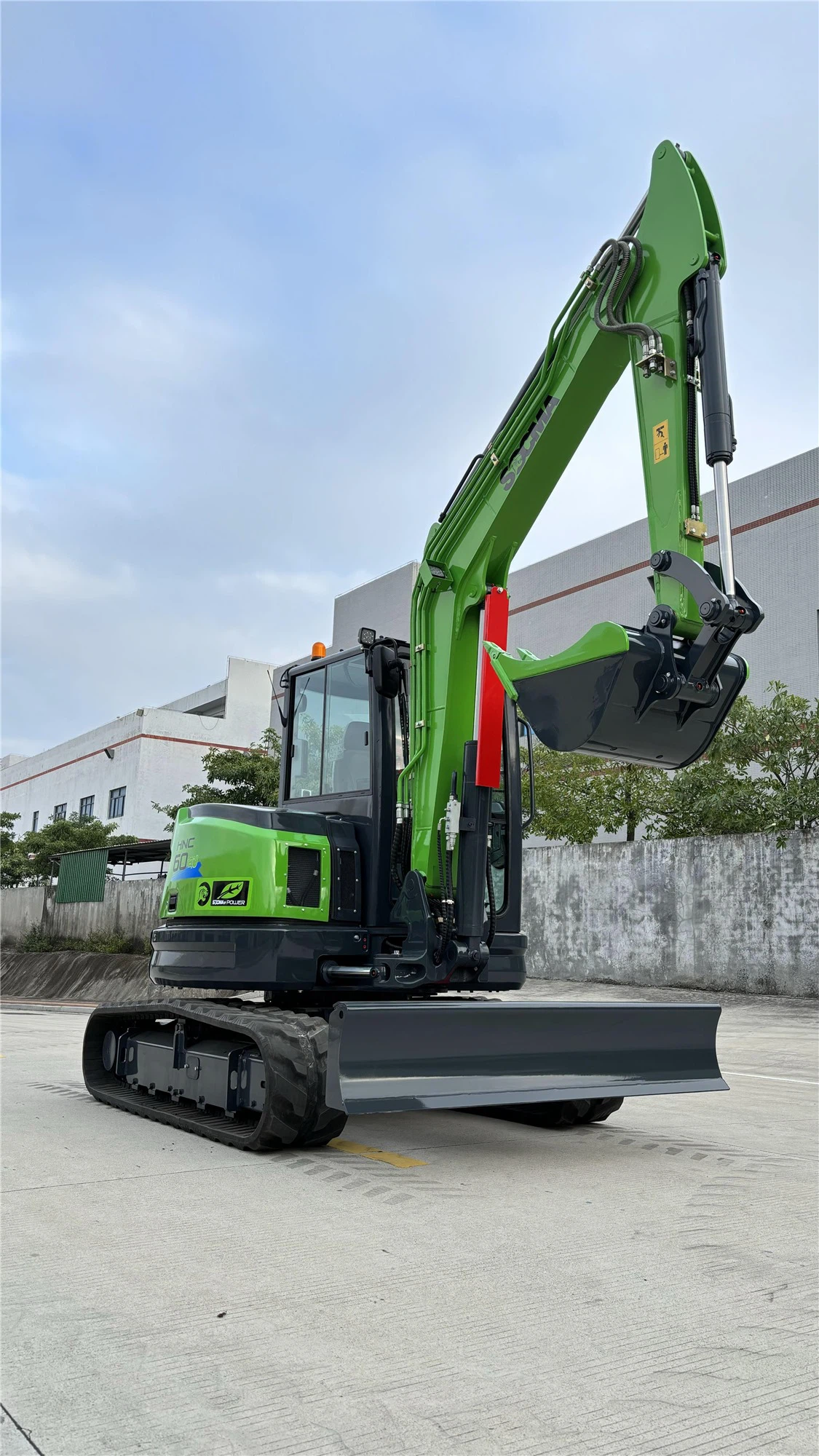

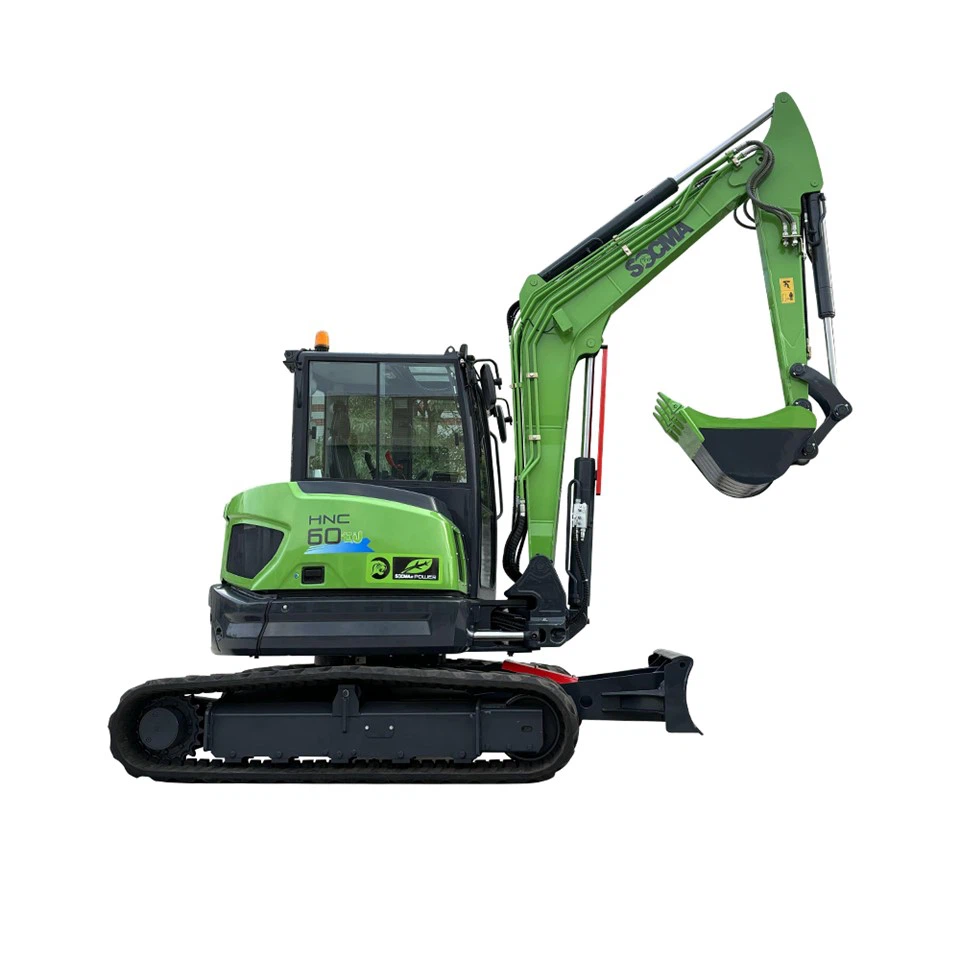

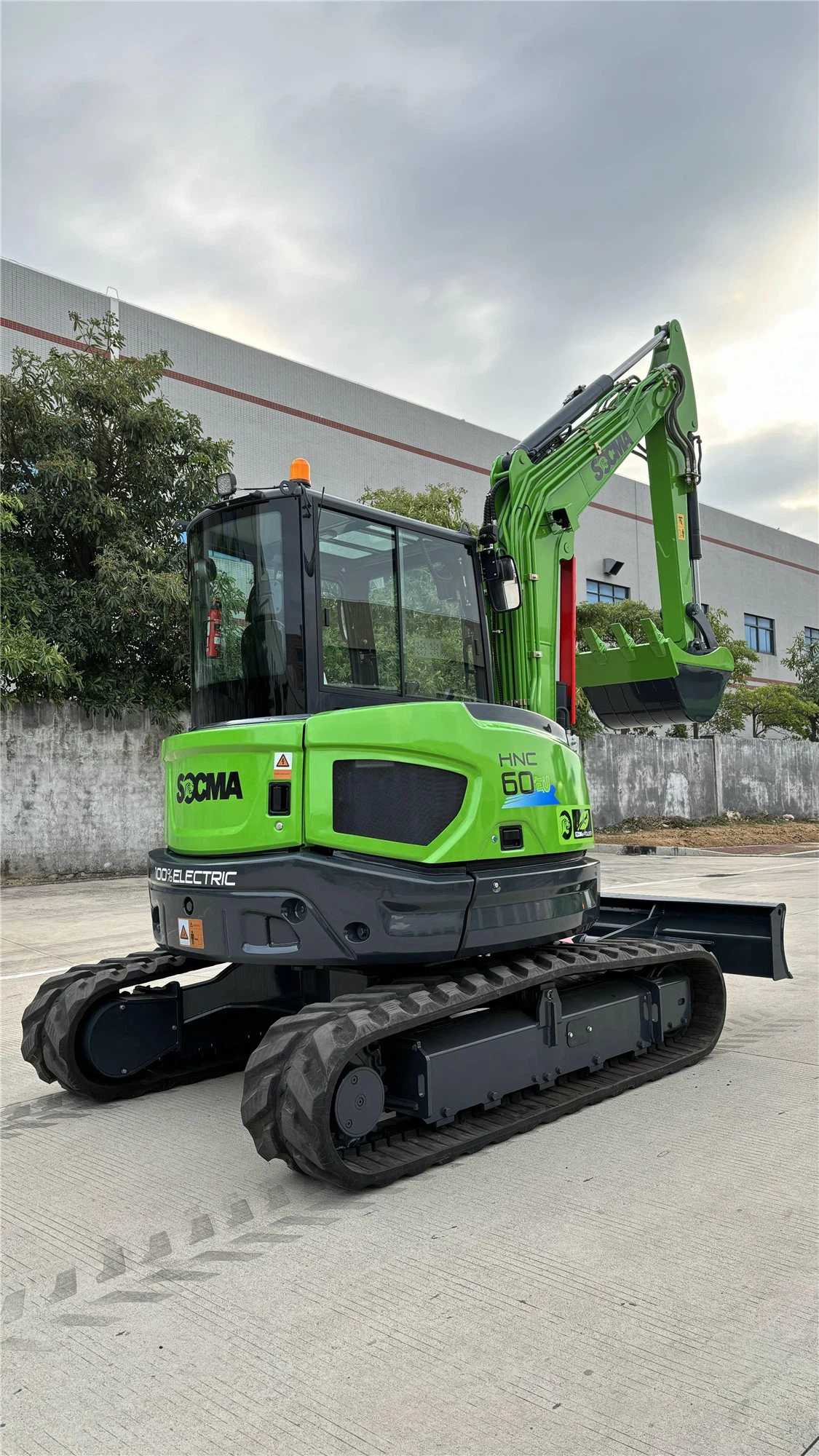

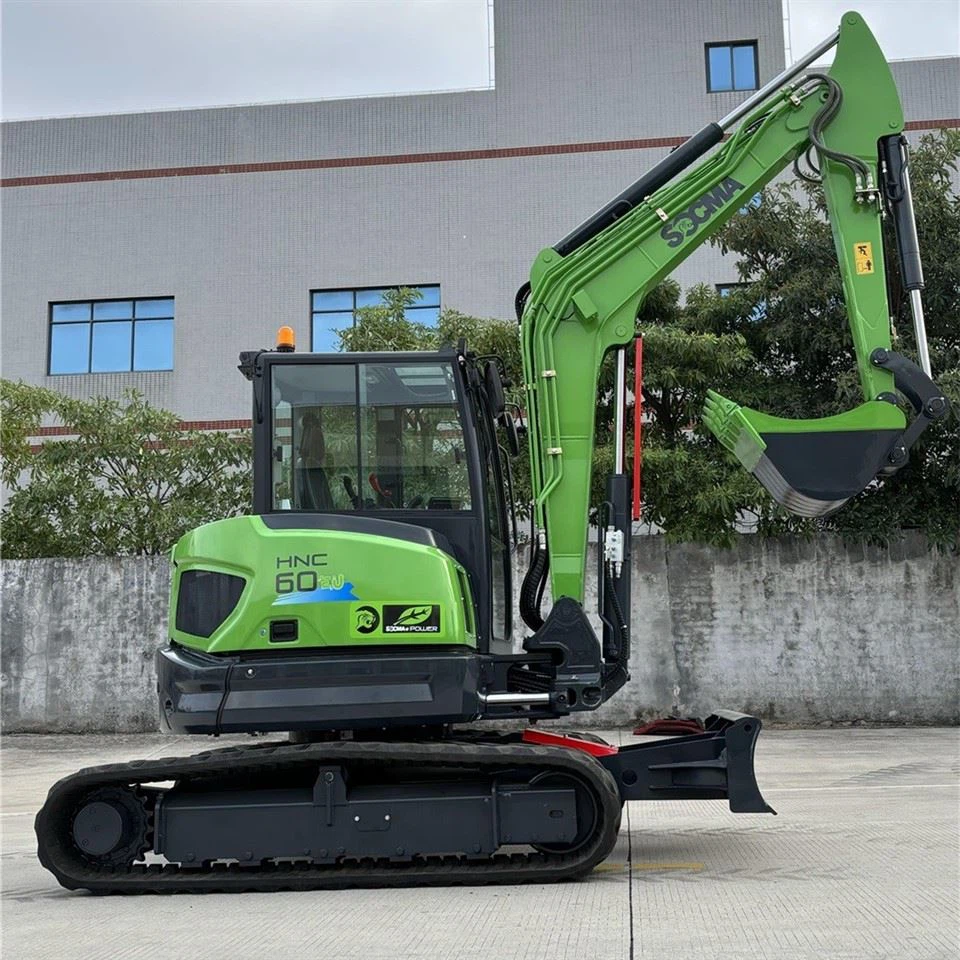

6 Ton Electric Crawler Excavator For Construction New & Used With Core Engine & Motor Components

1,Lithium-ion power, safe and eco-friendly. Equipped with CATL's lithium iron phosphate power battery system, featuring intelligent thermal management for safety, environmental protection, and reliability. A hybrid energy storage system of lithium battery and hydraulic accumulator, with a nominal energy of 66.56kWh, meets the instantaneous power demands of the energy storage unit and satisfies the requirements for extended operation. High-voltage direct current fast-charging technology allows for 4 to 5 hours of use after just 1 hour of charging. The charging port is compatible with multiple standards, including Chinese, American, European, and Japanese. The machine emits no exhaust fumes during operation, achieving true zero emissions and zero pollution.



2,High-end configuration, high efficiency. It uses a high-efficiency, high-torque permanent magnet synchronous motor, providing powerful performance to meet the efficient operation needs in various scenarios. A single-pump variable hydraulic system is employed, with an advanced hydraulic system matched to a robust power system, ensuring the excavator has excellent digging and grabbing capabilities, thus improving work efficiency.



3,Short tail design, maneuverable and flexible. The short tail design makes the excavator more agile, with a minimum turning radius of 2557mm, making it easier to operate in confined working areas, suitable for urban construction and engineering work in tight spaces. The excavator arm with an articulated frame allows for a left swing angle of 70° and a right swing angle of 50°, significantly increasing the digging and rotating range, which greatly improves work efficiency. It uses an electro-hydraulic drive motor, high-strength drive wheels, idler wheels, carrier rollers, and guide wheels, with a climbing ability of 70%, offering good off-road performance. Rubber tracks are used, which are lightweight, low-noise, low-vibration, have strong traction, good passability, climbing ability, and provide ground protection.



4,Comfortable driving and easy maintenance. The cab is designed with low noise and low vibration, offering a wide field of vision. It features a suspended seat, an advanced air conditioning system, and ergonomic design, providing operators with a comfortable working space. An advanced electro-hydraulic control system makes the excavator's operation simpler and more precise, allowing operators to easily complete tasks such as digging and loading. The Vehicle Control Unit (VCU) makes overall vehicle control decisions, matched with a multifunctional LCD display, comprehensively monitoring the working status of the motor and power battery (temperature, charge, RPM, etc.). Domestic high-quality electrical components are used, with a maintenance-free battery and flame-retardant materials for wiring, and waterproof connectors. The entire vehicle's VCU has power on/off detection, fault diagnosis, protection, and storage functions, ensuring reliable and durable operation. The structural components, transmission system, and hydraulic system are compactly arranged, with a removable hood for easy maintenance. The structural components, transmission system, and hydraulic system are compactly arranged, with a removable, open-style hood, ensuring good maintainability.
