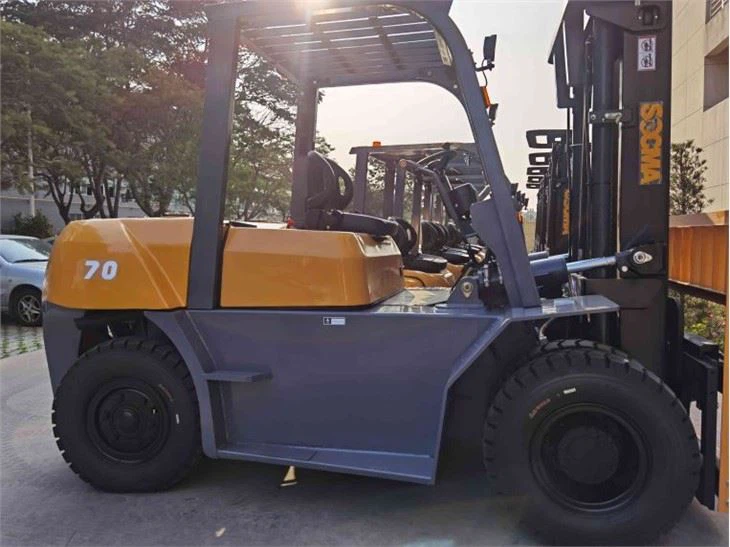

7ton Heavy Duty Forklift For Sale
600mm load center, 1220mm fork length
3000mm lifting height, two stage wide view mast
Hydraulic transmission
With overhead guard
Pneumatic tires (4/2)
1. Product quality control and delivery time is strictly controlled;
2. Direct manufacturing factory offering competitive price;
3. All the inquiries will be replied within 12 hours;
4. OEM & ODM service are available;
5. Providing first-class after-sales services to the customers.
------------------------------------------------------
Why choose us ?
1.We are the biggest facrory of door and window hardware in jiangsu province ,china .
2.Quality Control through the whole Manufacturing process.
3.General Inspection on fixing before Packing.
4.Our hardware all passed ISO 9001.
5.service long life of pvc/upvc sliding door hardware adjustable door roller copper brass adjustable door roller.
6.Many other Designs for you to choose and we can Accept minimum order. Your interests can be fully Guaranteed.
7.After you make order, we will Follow up the whole process and Update it to you. Collecting goods, Loading containers and Tracking goods transport information for you.
8.Any of our products you are interested, or any customized orders you wish to place, any items you want to buy, Please let us know your requirements. Our team will do our best to Help you .




I. Parameter-Standard Configuration
Model | UNIT | HNF-70T | ||
Specifications | Power Unit | Diesel | ||
Operator Type | Driver/seat | |||
Transimission Box Type | Electronic hydraulic transmisson | |||
Rated Capacity | kg | 7000 | ||
Load Center | mm | 600 | ||
Max.Lifting Height | mm | 3000 | ||
Tire Type | Pneumatic Tyre | |||
Tire Number | Front | 4 | ||
Rear | 2 | |||
Tire Size | Front | 8.25×15-14PR | ||
Rear | 8.25×15-14PR | |||
Performance | Lifting Speed | Loaded | mm/s | 450 |
Unloaded | 500 | |||
Lowering Speed | Loaded | mm/s | 500 | |
Unloaded | 450 | |||
Travelling Speed | Loaded | km/h | 25 | |
Unloaded | 30 | |||
Max.Gradeability (Loaded) | % | 27 | ||
Max.Drawbar Pull (Loaded) | kg | 5400 | ||
Mast Tilting Angle (Fwd/Bwd) | deg | 6/12 | ||
Free Lifting Height | mm | 155 | ||
Turning Radius | mm | 3370 | ||

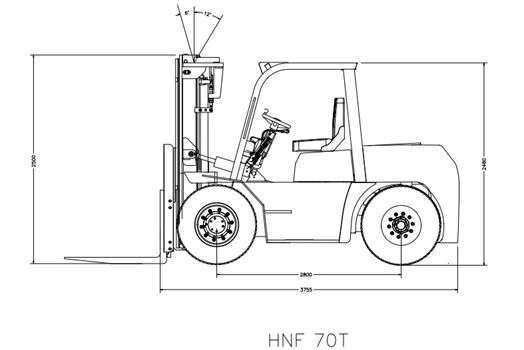

Dimensions | Overall Length (without fork) | mm | 4870 | |
Overall Width | mm | 2000 | ||
Overhead Guard Height | mm | 2480 | ||
Fork Size (LxWxT) | mm | 1220x150x65 | ||
Mast Height (Fork lowered) | mm | 2500 | ||
Battery (Voltage/Capacity) | V/Ah | 2×12/90 | ||
Truck Weight | kg | 9400 | ||
Fuel Tank Capacity | L | 135 | ||
Engine | Brand | ISUZU | ||
Model | 6BG1 | |||
Rated Power | kw/rpm | 82.3/2000 | ||
Rated torque | n-m/rpm | 418/1500 | ||
Number Of Cylinder | 6 | |||
Displacement | 6.49 | |||
