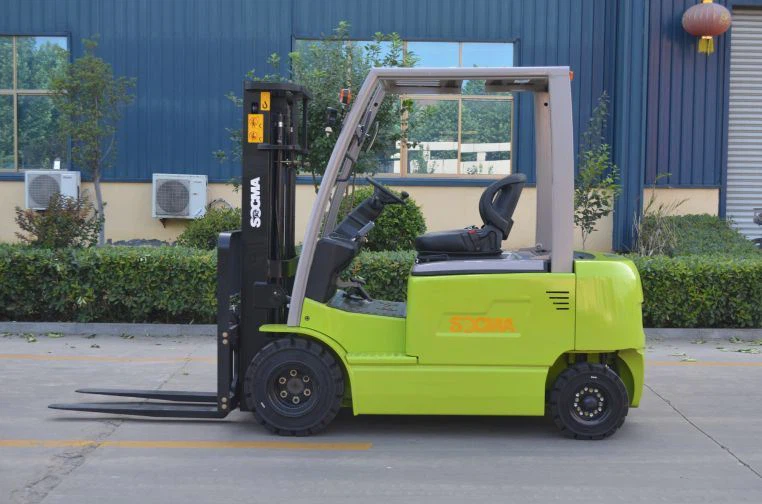

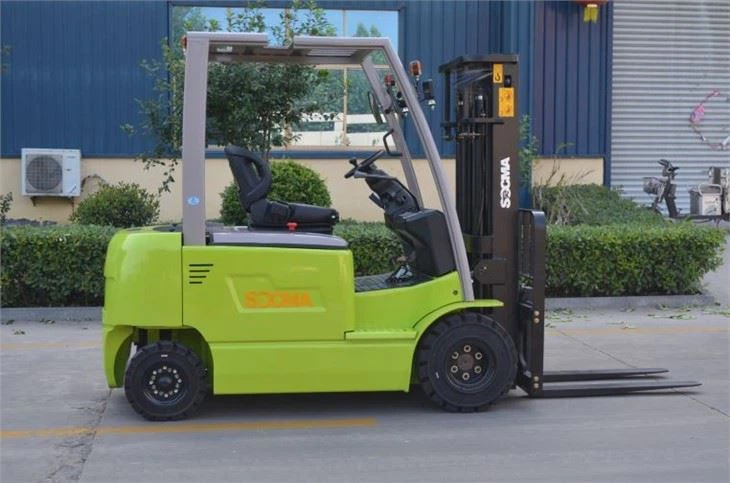

1.6t To 3t Small Intelligence Electric Forklift Lithium Battery Lead-acid Battery
1.6t To 3t Small Intelligence Electric Forklift Lithium Battery Lead-acid Battery
1.6t To 3t Small Intelligence Electric Forklift Lithium Battery Lead-acid Battery
1.6t To 3t Small Intelligence Electric Forklift Lithium Battery Lead-acid Battery
Intelligence Electric Forklift Lithium
small tonnage forklift
Customize for you
Intelligence * safety * efficiency * environmental protection * comfort
| characteristics | type | FB20T | ||
| Load capacity/rated load | kg | 2000 | ||
| Load center distance | mm | 500 | ||
| size | Mast：std | rated lifting the biggest fork height | mm | 3000 |
| free lifting height | mm | 140 | ||
| Fork | thickness and width and length | mm | 40X100X1070 | |
| Fork spacing range | Max and Min | mm | 200X970 | |
| Tilt of mast | fork carriage forward/backward | deg | 7/7 | |
| Overall dimension | overall length | mm | 2095 | |
| overall width | mm | 1140 | ||
| mast height | mm | 2010 | ||
| height， mast extended | mm | 4080 | ||
| height of overhead guard | mm | 2040 | ||
| Aisle width for pallets crossways | mm | 2170 | ||
| Aisle width for pallets 800×1200 lengthways | mm | 3725 | ||
| Turning radius | min outside | mm | 1970 | |
| performance | Speed | Travel speed(unladen | km/h | 18/18 |
| lift speed(unladen) | mm/s | 550 | ||
| lift speed(laden) | mm/s | 400 | ||
| lowering speed(unladen) | mm/s | 500 | ||
| lowering speed(laden) | mm/s | 500 | ||
| Max. drawbar pull | laden | N | 12100 | |
| unladen | N | 12000 | ||
| Max. grade ability | laden | % | 22 | |
| weight | Service weight | No load | kg | 3550 |
| Laden | front | kg | 4820 | |
| rear | kg | 730 | ||
| Unladen | front | kg | 1580 | |
| rear | kg | 1970 | ||
| frame | Wheels | Type size, front | 200/50-10 | |
| Type size, rear | 16×6-8 | |||
| distance | mm | 1500 | ||
| Type size, front | mm | 920 | ||
| Type size, rear | mm | 915 | ||
| Overhang: rear | mm | 250 | ||
| Overhang: front | mm | 355 | ||
| Ground clearance | frame | mm | 100 | |
| mast | mm | 80 | ||
| E-motor | Battery | type | v/ah | 6PzS720h |
| battery voltage / nominal capacity | v/ah | 48/720 | ||
| Driving motor rating | type | TSA200 | ||
| rated power | kw/rpm | 4.8×2 | ||
| Lift motor rating | type | YDB11 | ||
| rated power | kw/rpm | 11 | ||
01 The man-machine engineering
This machine makes full use of the ergonomic design concept, reduces the fatigue strength of the operator from many aspects, improving the ride comfort of the operator, which embody the people-oriented design concept.
02 Security Stabilization
The vehicle design always is the basis of higher security and higher stability, every detail is to improve the stability of the vehicle, or to improve the vehicle's safety coefficient.
03 High Efficiency
Environment protection*energy saving
High efficiency, environmental protection, and energy-saving is the guiding ideology of vehicle design, with every effort along with the guiding ideology for divergent thinking.
04 Intelligent Control
Whole vehicle intelligent control is to realize the man-machine engineering vehicles, security, stability, high efficiency, environmental protection and energy-saving.
05 Easy to Maintain
Maintenance-free, easy to maintenance cost greatly reducing vehicle use, which is truly satisfies customers finally.
