1.6 Tons Double Drive Electric Forklift
4wheels electric forklift
Double drive motor
ZAPI full AC electric control
Gotion lithium battery
Solid trye
SOCMA 1.6 Tons Electric Forklift With Double Drive Motors

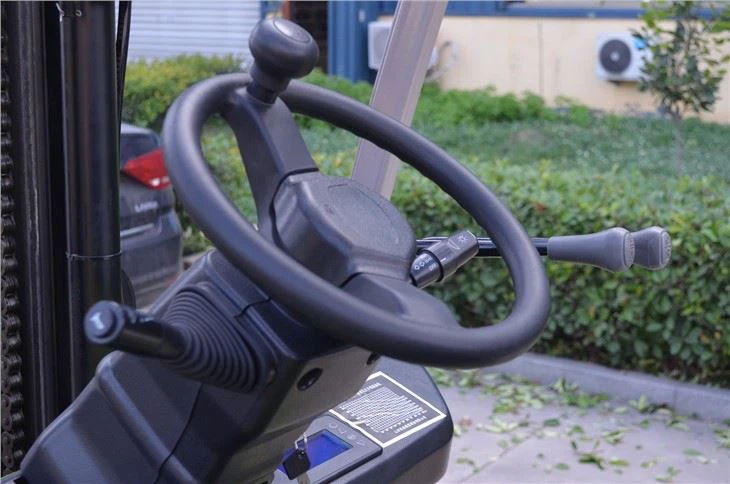

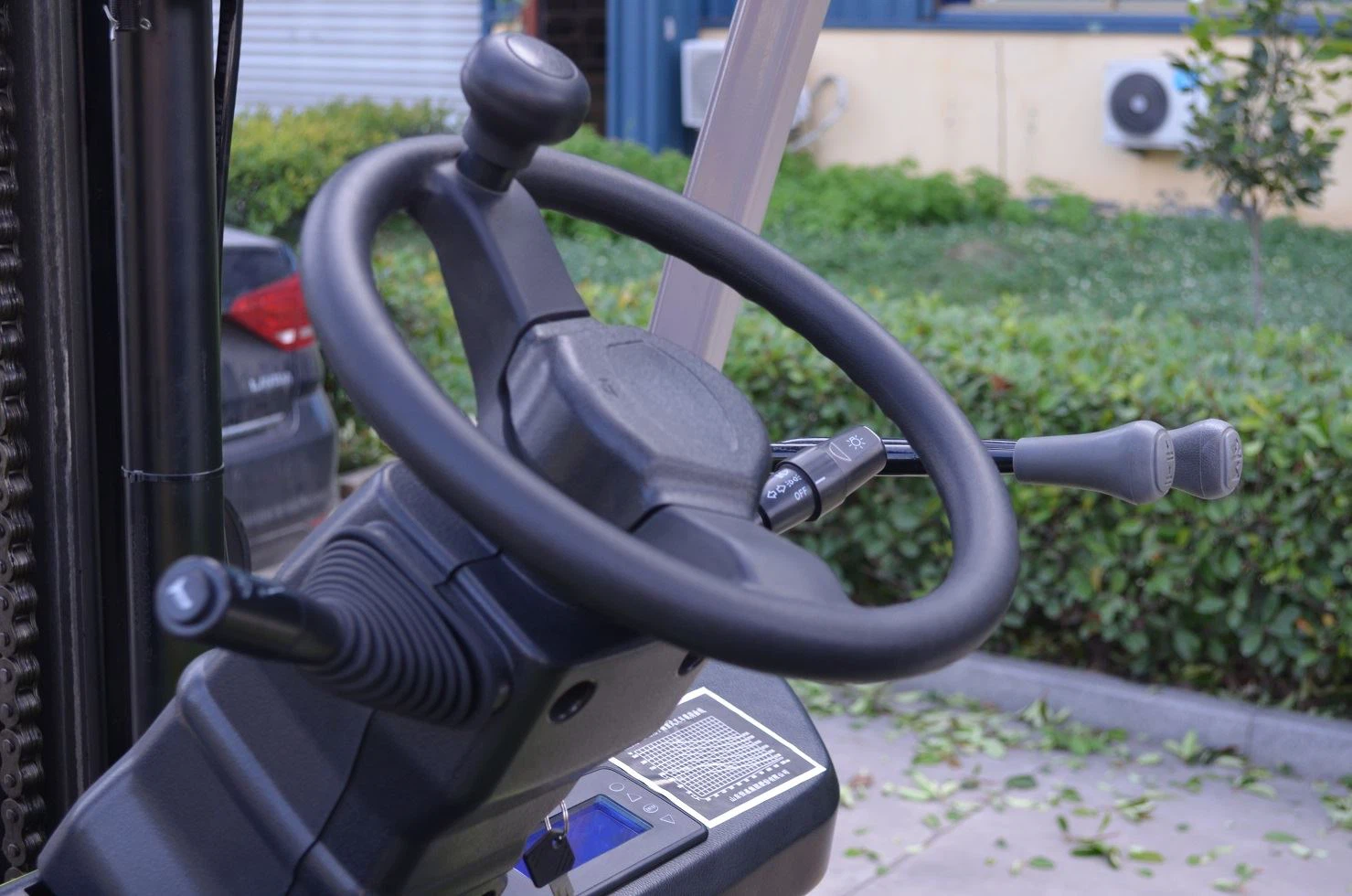

SOCMA electric forklift's steering wheel angle can be adjusted up to 15 degrees, the seat's front and rear movement distance of 150mm, and the backrest can be adjusted at 45 degrees, which can be adjusted by the operator according to needs, suitable for people of various shapes.
The design of larger leg space in this electric forlift reduces the constraints on the legs during operation; the lower and wider pedal design makes it easier for the operator to get on and off the vehicle.

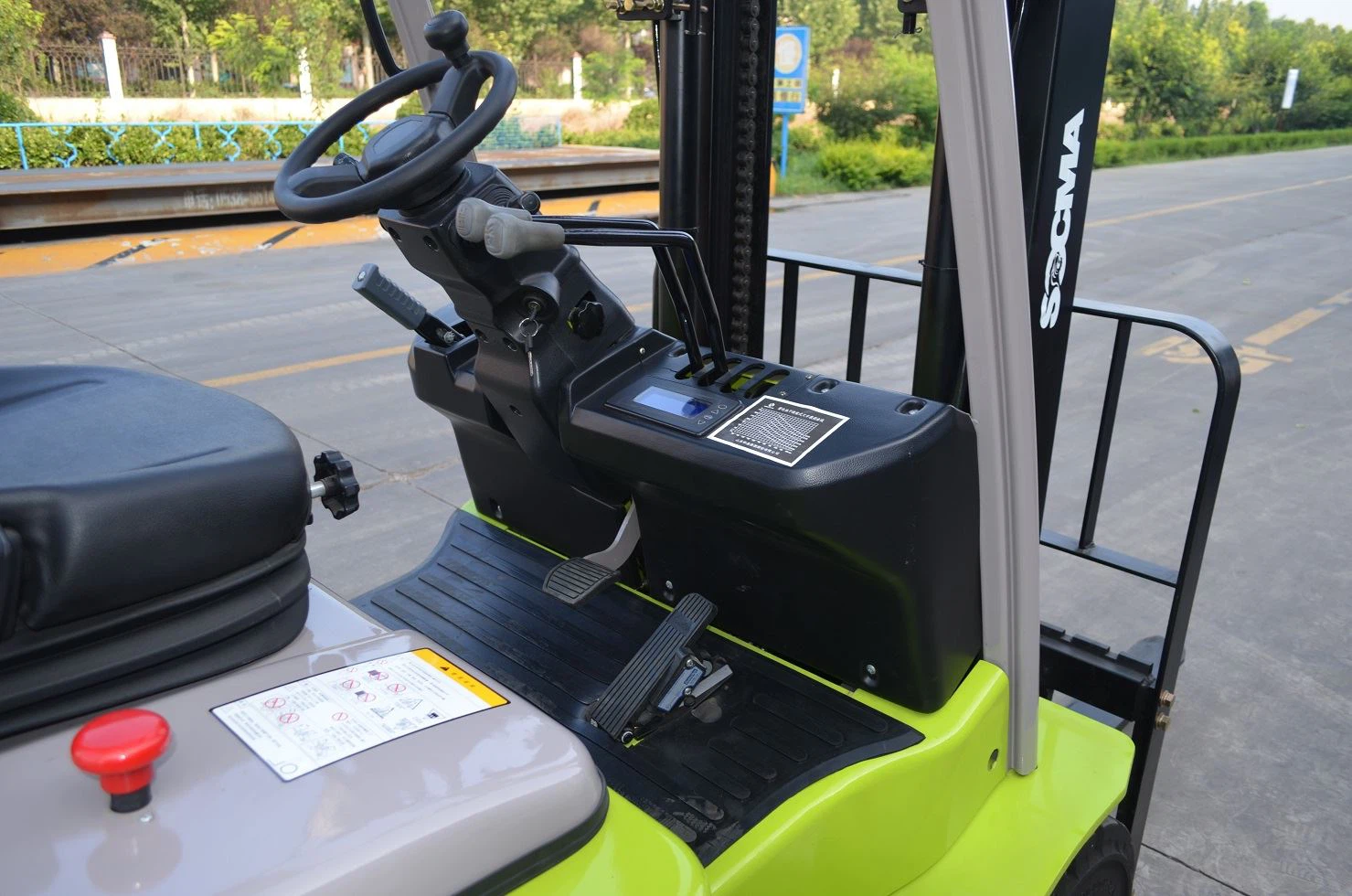

The electric powered forklift is equipped with a large button emergency switch to avoid safety problems in emergency situations.
The regenerative braking function can be activated when accelerating, reversing forward and backward, when driving on a slope, and braking, so that the battery can recover energy and extend the battery life.
| Double Drive Electric Forklift | ||||
| Characteristic | Model | FB416 | ||
| Rated load | kg | 1600 | ||
| Load distance | mm | 500 | ||
| Dimension | Standard mast | Max. lifting height | mm | 3000 |
| Free lifting height | mm | 140 | ||
| Fork | Thickness X width X length | mm | 40X100X1070 | |
| Fork pitch range | Min-max | mm | 200X970 | |
| Mast angle | Forward/backward | deg | 7\7 | |
| Outside size | Total length (to the vertical plane of the fork) | mm | 2090 | |
| width | mm | 1080 | ||
| Mast height when fork lowered | mm | 2010 | ||
| Mast height when fork raised | mm | 4080 | ||
| Height of overhead guard | mm | 2040 | ||
| Min. theoretical width of right-angle channel | mm | 2170 | ||
| Min. theoretical width of right-angle stacking channel | mm | 3725 | ||
| Turning radius | Smallest outside | mm | 1970 | |
| Performance | Speed | Max. travel (no load) | km/h | 18/18 |
| Lifting (no load) | mm/s | 600 | ||
| Lifting (full load) | mm/s | 500 | ||
| Lowering (no load) | mm/s | 500 | ||
| Lowering (full load) | mm/s | 500 | ||
| Max. traction force | Fully loaded | N | 12500 | |
| No load | N | 12300 | ||
| Max. gradeability | Fully loaded | % | 25 | |
| Load | Total weight | No load | kg | 3210 |
| Fully loaded | Front | kg | 4220 | |
| Rear | kg | 610 | ||
| No load | Front | kg | 1570 | |
| Rear | kg | 1640 | ||
| Chassis | Tyre | Front | 18X7-8 | |
| Rear | 16X6-8 | |||
| Wheelbase | Distance | mm | 1500 | |
| Track | Front | mm | 910 | |
| Rear | mm | 915 | ||
| Rear overhang | mm | 250 | ||
| Front overhang | mm | 340 | ||
| Min. Ground clearance | Chassis | mm | 100 | |
| Mast | mm | 80 | ||
| Driving system | Battery | Model | 6PzS720H | |
| Voltage/capacity | v/ah | 48/720 | ||
| Walking motor | Model | TSA200 | ||
| Rated power | kw/rpm | 4.8X2 | ||
| Lifting motor | Model | YDB11 | ||
| Rated power | kw/rpm | 11 | ||
