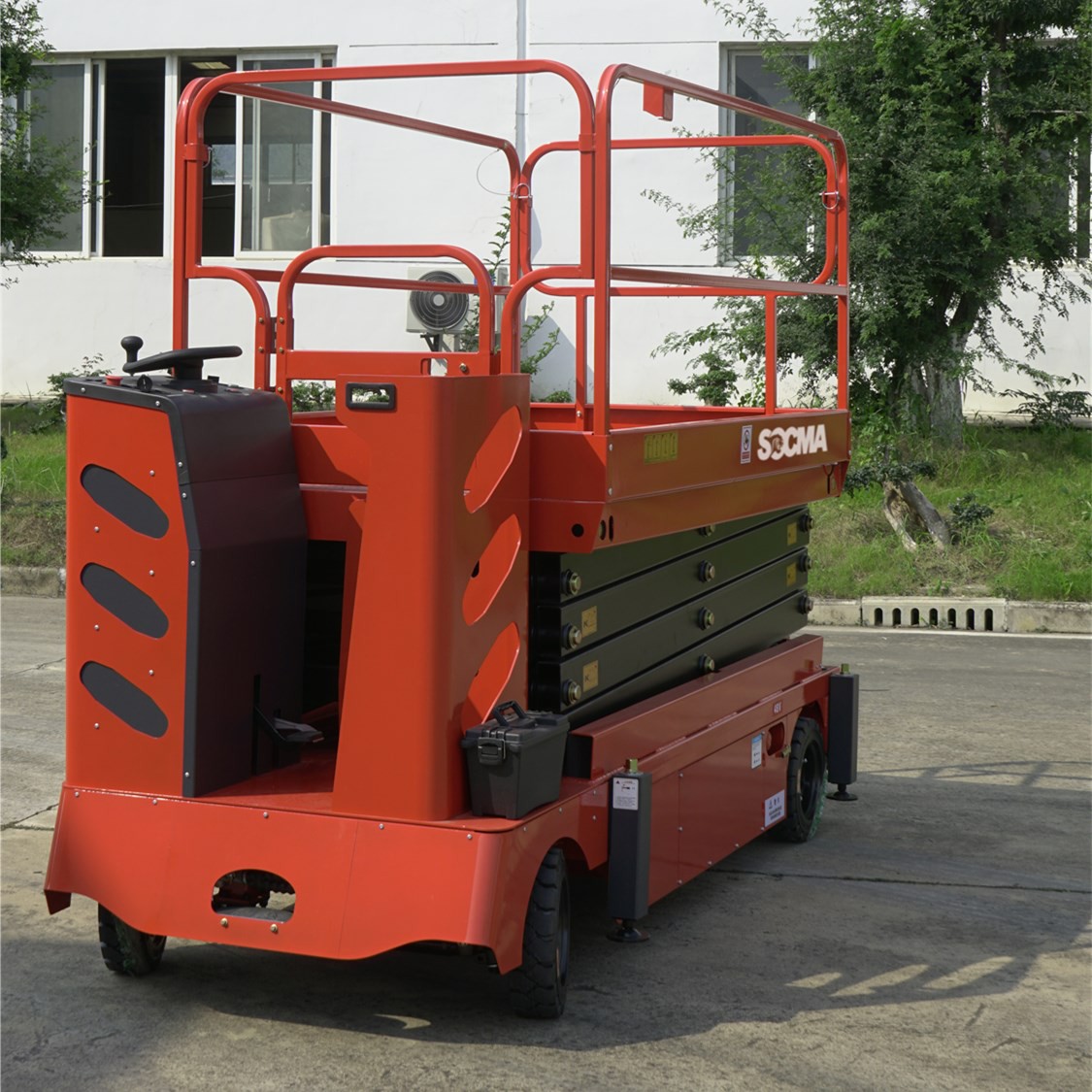

SOCMA 500kg Capacity Height Of 9m Ectric Hydraulic Aerial Work Platform Station Driving Scissor Lift

1. 500kg Heavy-Duty Load Capacity with 9m Max Platform Height
This hydraulic full-electric scissor lift is engineered to handle a rated load capacity of up to 500 kg, making it ideal for elevated tasks involving personnel and equipment. With a maximum platform elevation height of 9000 mm, it guarantees reliable operation across demanding aerial applications such as equipment installation, repairs, and warehouse tasks at height.



2. Station Driving Operation for Enhanced Control and Maneuverability
The SJY-Z series features a stand-on, station driving design, enabling operators to maneuver and control the entire lift platform while riding, without dismounting. This not only increases worksite mobility and productivity but also allows seamless transition between tasks at various locations, reducing the time needed for moving and positioning the unit.



3. Dual Electric Motor System for Lifting & Driving
Equipped with an independent dual-electric motor system - a 48V/2.2kW motor for platform lifting and a 48V/2.5kW drive motor for propulsion - the lift ensures optimal performance with energy-efficient operation. The robust 48V battery setup and 48V/10A charger provide stable power output, supporting extended usage in intensive work environments.



4. Optimized Platform Design with Expanded Safety Measures
Featuring a spacious platform size of 2150 mm × 1146 mm with guardrails and an extendable deck length up to 2730 mm, this scissor lift offers maximum working flexibility. Integrated ground-level emergency stops and platform tilt safety features work together to ensure operator safety during both lifting and transport, minimizing accident risk.



5. Compact Body for Flexible Site Access and Transport
Despite its robust capabilities, the SJY-Z maintains a compact structure with an overall body length of just 2780 mm and a narrow width of 1285 mm, facilitating easy access through industrial doorways and confined areas. Its low body height of 2120 mm and operating weight of 1580–1830 kg (depending on the model) make it convenient for transport and storage.
