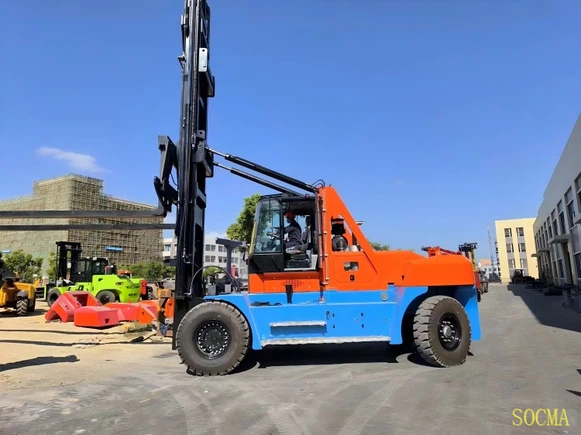

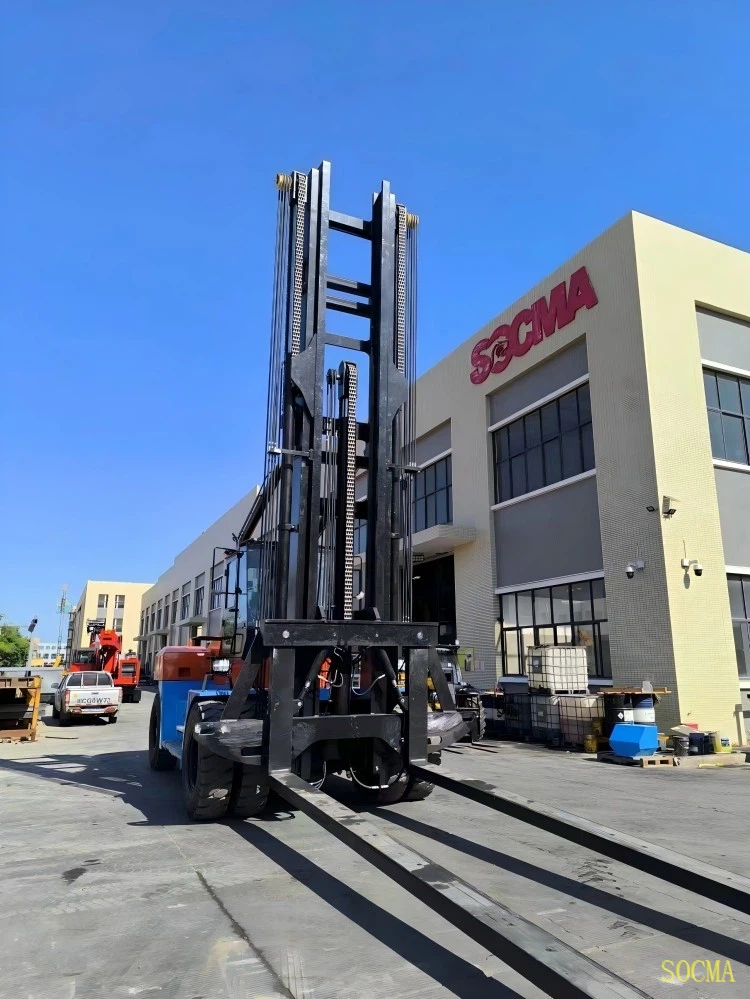

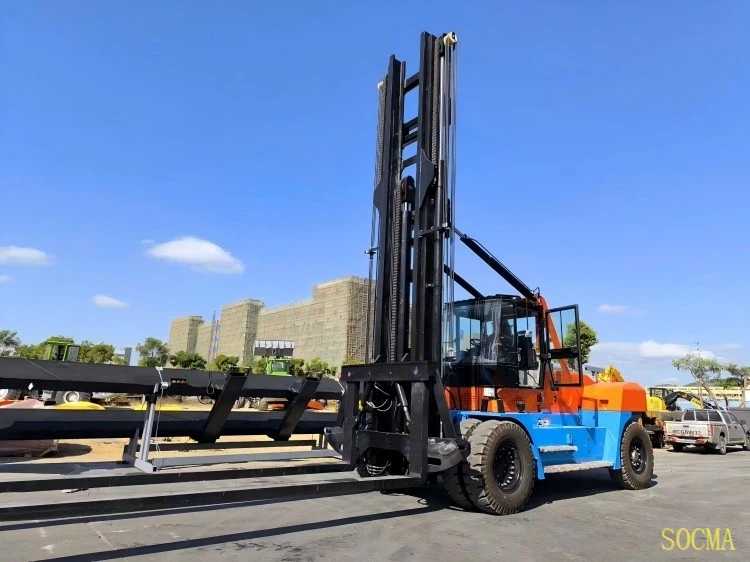

SOCMA HNF-W250-15-6 Marine Forklift
2. For pier use lifting height 15 m, the downward lifting depth is 6 meters
3. Seawater anti-corrosion coating
4. Spare parts backup package and tools for usual usage
5. Provide at side or online handover training
1.Marine Forklift Introduction
SOCMA Industry Park has more than 40000 square meters. In order to provide standard and high-quality product, SOCMA production line equipped with state-of-art modern machines in sections of cutting, welding, painting and testing.
Power system: Equipped with Cummins QLS9.3.-C220 Turbocharged engine, rated capacity 162kw, Max.rpm 1100N.m, the engine system adopts international advanced fuel system, which has the advantages of low fuel consumption, low noise, strong power and stable output.
Transmission: Equipped with Origin imported ZF electronic transmission, Shift smoothly and reliably with low noise.
Drive axle:Equipped with Origin imported Kessler drive axle, the axle housing has high strength, large load-bearing capacity, strong anti-pollution ability, good heat dissipation, reliable performance, stable quality and wet braking.
Working system: Equipped with weighing system, the torque body leveling function improves the stability and safety of vehicle operation.
Wheel system: Using GKN rims and highly reliable spoke-less pressure plate structure to meet the requirements of various heavy-load conditions.
Hydraulic system: Equipped with plunger pump variable system is energy-saving, efficient and stable.
2.Marine Forklift Specifications
| Name | Unit | Parameter value |
| Load center |
mm |
2400 |
| Lifting capacity | kg | 13000 |
| Lifting Height | mm | 6700 |
| Max.Negative height | mm | 6000 |
| Mast tilting angle (Front/Rear) | Grad | 3/6 |
| Travel speed (Fully loaded/Unload) | km/h | 28/30 |
| Min.Turning radius | mm | 6700 |
| Max.Gradeablity | Grad | 20 |
| Overall Length (Without forks) | mm | 6860 |
| Overall Width | mm | 3060 |
| Overall Height (Mast lowering) | mm | 13000 |
| Wheelbase | mm | 4400 |
| Wheel track (Front/Rear) | mm | 2200/2390 |
| Min.Ground clearance | mm | 250 |
| Fork Dimension (Length/Width/Thickness) | mm | 7000/200/260 |
| Engine | Cummins QSL9.3-C220 | |
| Engine Rated Power/rpm | kW/rpm | 162/2000 |
| Engine Max.torque/rpm | Nm/rpm | 1050/1400 |
| Transmission | Gear | ZF F3/R3 |
| Drive axle | Kessler D81 |
