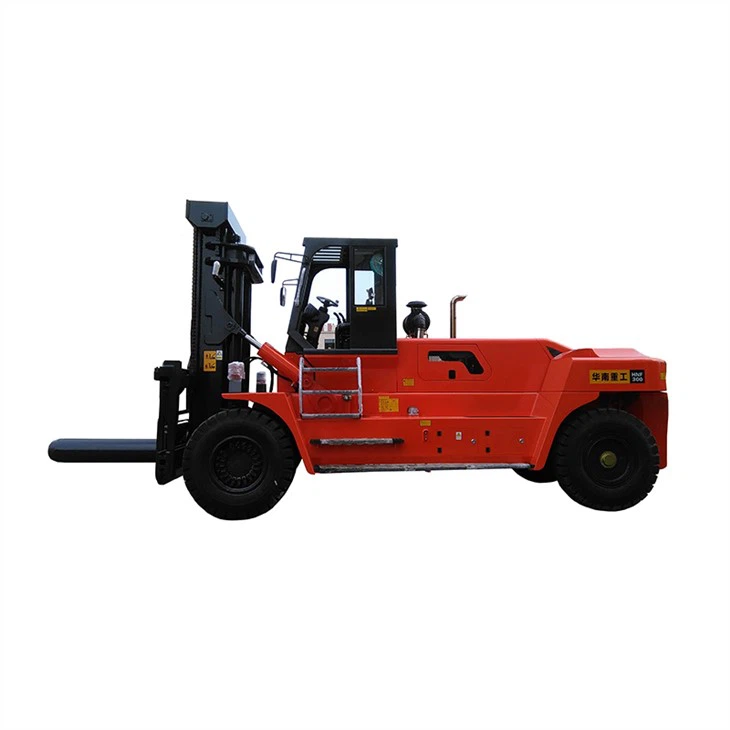

SOCMA Brand High Mast Heavy Duty 30 Ton Forklift In Logistic Port
SOCMA Brand High Mast Heavy Duty 30 Ton Forklift In Logistic Port
SOCMA Brand High Mast Heavy Duty 30 Ton Forklift In Logistic Port
SOCMA Brand High Mast Heavy Duty 30 Ton Forklift In Logistic Port
SOCMA Brand High Mast Heavy Duty 30 Ton Forklift In Logistic Port
SOCMA Brand High Mast Heavy Duty 30 Ton Forklift In Logistic Port
SOCMA Brand High Mast Heavy Duty 30 Ton Forklift
Why Chose Us?
Fujian Southchina Heavy Machinery Manufacture Co.,Ltd dedicates to the R&D of material handling equipment, construction machineries and new energy construction&port machineries such as heavy duty forklift, crane forklift, telehandler, electric excavator, electric wheel loader, extended range electric wheel loader, electric heavy duty forklift, etc. And furnace-tending vehicle&furnace-charging vehicle which is customized for using in the metal smelting industry.
•The mission of SOCMA
Dedicating to provide the most rugged and durable, high cost-effectiveness, high return rate material handling equipment, construction machinery products and service to our client.
•The vision of SOCMA
Let SOCMA become the respectable international brand from China.
•The core value of SOCMA
Customer oriented, staff foremost, insist on self criticism and Introspection, SOCMA is growing up always.
| ITEM | HNF300 | ||
| Features | Rated Load | Q(t) | 30 |
| Load center | c(mm) | 1250 | |
| Wheelbase | y(mm) | 4800 | |
| Weight | Weight | kg | 40000 |
| Chassis | Tyre Specs. | 14.00-24-32PR | |
| Tyres Qty,front/rear(X-drive wheels) | 4\2 | ||
| Wheel tread:Front | b10(mm) | 2420 | |
| Wheel tread:Rear | b11(mm) | 2390 | |
| Dimension | Mast/carriage tilt angle(front/rear) | Degree(°) | 6\12 |
| Mast height(fork lowering) | h1(mm) | 3950 | |
| Mast lifting height | h3(mm) | 3500 | |
| Max.lifting height | h4(mm) | 5700 | |
| Height to head guard(height to cab) | h6(mm) | 3800 | |
| Overall length(with forks) | l1(mm) | 9590 | |
| Fork front vertical surface to the rear end of the vehicle | l2(mm) | 7150 | |
| Overall width | b1/b2(mm) | 3200 | |
| Fork dimension | s/e(mm) | 2440X320X110 | |
| Fork carriage with | B3(mm) | 3100 | |
| Dimension | Mast min ground clearance(with load) | m1(mm) | 350 |
| Wheelbase center min ground clearance(with load) | m2(mm) | 410 | |
| Min.Turning radius | Wa(mm) | 7260 | |
| Travel speed(with load/without load) | km/h | 24/28 | |
| Performance | Max Lifting Speed(with/without load) | mm/s | 260/280 |
| Max Lowering Speed(with/without load) | mm/s | 250/180 | |
| Traction | KN | 220 | |
| Gradeablity(with load/without load) | % | 20/21 | |
| Driving brake | Hydraulic clamp disc | ||
| Engine | Engine brand | Cummins | |
| Engine model | QSC8.3-C260 | ||
| Fuel Tank | L | 8.3 | |
| Rated Power | KW | 194 | |
| Rated Turning Speed | rpm | 2200 | |
| Cylinder No. | 6 | ||
| Others | Transmission gears(Front/rear) | 2\1 | |
