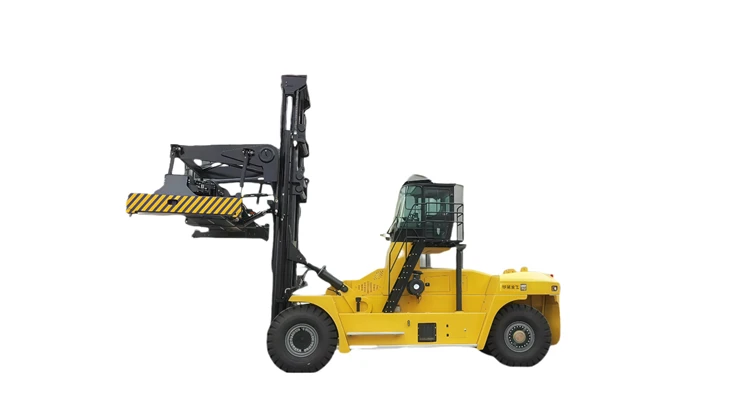

SOCMA 50t Forklift
2.Transmission：Dana transmission
3.Drive Axle：Kessler heavy duty wet brake driving axle
4.Fork carriage：Quick hitch shelf and Hydraulic fork positioner
5.Tires：Deep groove heavy forklift tires
Fujian SOCMA Machinery Manufacture Co., Ltd. is one of the leading manufacturers and suppliers of socma 50t forklift in China. With a professional production team, we are able to meet the needs of the majority of our customers. Please rest assured to buy customized equipment at competitive price from our factory.
1. SOCMA 50t Forklift Introduction
The design of the whole machine fully reflects the guiding role of market demand.
It uses the SOCMA's complete forklift production platform, uses the SOCMA's forklift research as the technical support, and takes more effective customer service as the design principle.
Heavy containers main working conditions are the logistics ports, land ports, railway goods yards.
With world well-known brand engine Cummins engine, it has strong power and reliable quality. Imported Kessel axle, the same configuration as Hyster, Kalmar, Yale and Hyundai Forklift.
2. SOCMA 50t Forklift Specifications
| Item | Description | Unit | Specificaitons |
| Features | Rated load | Q (t) | 50 |
| Load center | c (mm) | 1200 | |
| Wheelbase | y (mm) | 6000 | |
| Weight | Weight | kg | 60000 |
| Chassis | Tyre Specs: Front | 18.00-25-40PR | |
| Tyre Specs: Rear | 18.00-25-40PR | ||
| Tyres Qty (front/rear) (X-drive wheels) | 4/2 | ||
| Wheel tread: Front | b10 (mm) | 3030 | |
| Wheel tread: Rear |
|
2786 | |
| Dimension | Mast/Carriage tilt angle (front/rear) | Degree (°) | 5/10 |
| Mast height (fork lowering) | h1 (mm) | 3800 | |
| Max. lifting height | h3 (mm) | 2300 | |
| Mast height (lifting) | h4 (mm) | 5725 | |
| Height to head guard (height to cab) | h6 (mm) | 3800 | |
| Overall length (with forks) | l1 (mm) | 11460 | |
| Fork front vertical surface to the rear end of the vehicle |
l2 (mm) |
8600 | |
| Overall width | b1/b2 (mm) | 4200 | |
| Fork dimension | s/e (mm) | 2400×300×150 | |
| Fork carriage width | b3 (mm) | 3400 | |
| Mast mini ground clearance (with load) | m1 (mm) | 300 | |
| Wheelbase center min ground clearance (with load) | m2(mm) | 460 | |
| Min.Turning radius | Wa (mm) | 8200 | |
| Travel speed (with load/without load) | km/h | 22/24 | |
| Performance | Max.lifting speed (with load/without load) | mm/s | 150/200 |
| Max.lowering speed (with load/without load) | mm/s | 300 | |
| Traction | kN | 250 | |
| Gradeablity (with load/without load) | % | 20 | |
| Driving brake | Oil-cooled multiple wet disc | ||
| Engine | Engine brand/model |
|
Xi'an Cummins QSM11 250kW Cylinder No. 6 |
| Others | Transmission gears (front/rear) | 3/3 | |
| Attachments working pressure | 180 | ||
| Attachments using oil amount | 80 |
3. SOCMA 50t Forklift Advantages
The whole machine is beautiful and smooth. Luxury wide view cabin, along with the skylight, low noise, good sealing.
The components are domestically produced, standardized and cost-effective. The accessories have good universality and are easy to purchase. Daily maintenance and upkeep are simple and fast.
The machine is widely used in airports, ports, docks, stations, warehouses and other big working intensity occasions for loading and unloading, stacking and short-distance transportation.
