SOCMA 3.5 Ton Telescopic Forklift
Fujian SOCMA Machinery Manufacture Co., Ltd. is one of the leading manufacturers and suppliers of socma 3.5 ton telescopic forklift in China. With a professional production team, we are able to meet the needs of the majority of our customers. Please rest assured to buy customized equipment at competitive price from our factory.

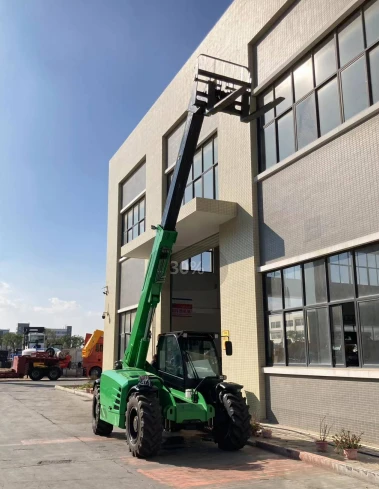

SOCMA HNT3507-z Telescopic Forklift
Product Description and Main Parameters
SOCMA has been pioneering the telehandler concept since 2010. Since then, we’ve remained the world’s first choice, and the SOCMA telehandler range has come to epitomise the very highest levels of performance and productivity. Not only that but the SOCMA Loadall lineup is one of the most extensive in the world, with competitive running costs, world-beating build quality, enviable versatility and top residual values.
Our telehandler range is over 30-strong, from compact models for accessing restricted sites to 4.1-tonne payload, 7m lift height machines. There’s an accompanying vast choice of attachments.
Part of the reason that the SOCMA telehandler has stayed ahead of the competition is our continued commitment to innovation. Most SOCMA Loadalls feature our world-renowned Dieselmax engine while all are designed for ultimate manoeuvrability and feature 3 different steer modes. There are specialist application packages too, like our Wastemaster range.
So when it comes to choosing a telehandler, there’s really only one choice: a JCB.
|
Item |
Unit |
HNT3507-4 |
||
|
Main Spec. |
Rated lifting capacity |
kg |
3500 |
|
|
Load center |
mm |
500 |
||
|
Lifting capacity in max. outreach |
kg |
1250 |
||
|
Max. working height for basic boom |
mm |
4850 |
||
|
Max. working height for whole arm |
mm |
7000 |
||
|
Max. outreach(without fork) |
mm |
3350 |
||
|
Min. outreach |
mm |
930 |
||
|
Min. ground clearance |
mm |
400 |
||
|
Min. turning radius |
mm |
6200 |
||
|
Amplitude elevation angle |
Max. elevation of the boom |
° |
60 |
|
|
Min. elevation of the boom |
° |
-11 |
||
|
Operating weight |
kg |
8600 |
||
|
Overall size |
Length with fork |
mm |
5730 |
|
|
Width |
mm |
2390 |
||
|
Height |
mm |
2485 |
||
|
Wheel track |
mm |
1870 |
||
|
Wheel base |
mm |
2700 |
||
|
Transmission system |
Max. traveling speed without load |
km/h |
30 |
|
|
Max. gradeability |
% |
≥30% |
||
|
Tyres |
Front (2) |
- |
16/70-24 |
|
|
Rear (2) |
- |
10.00-20-16 |
||
|
Engine |
DF Cummins |
Model |
|
4BTA3.9-C80II |
|
Rated power |
kW/rpm |
60/2000 |
||
