Mining Machinery 5ton Electric Wheel Loader
Fujian SOCMA Machinery Manufacture Co., Ltd. is one of the leading manufacturers and suppliers of mining machinery 5ton electric wheel loader in China. With a professional production team, we are able to meet the needs of the majority of our customers. Please rest assured to buy customized equipment at competitive price from our factory.

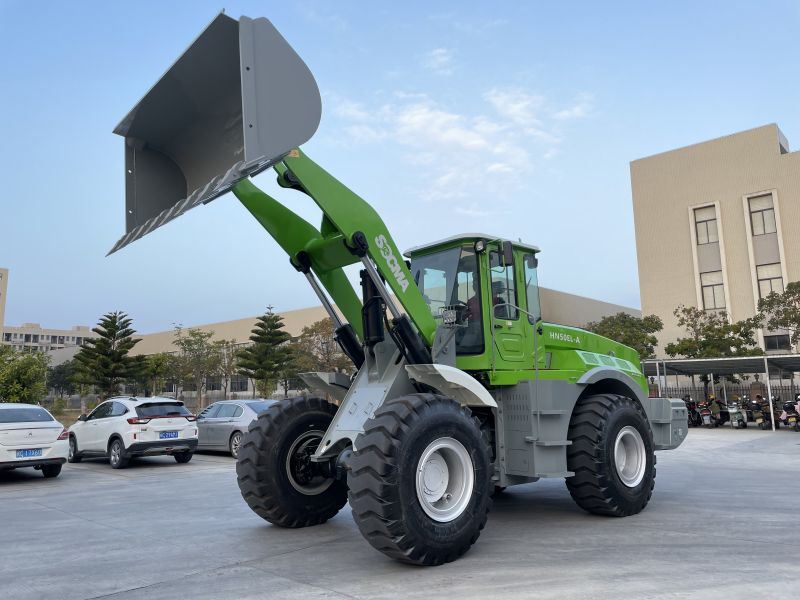

SOCMA 5ton electric wheel loader
#lithiumbattery
#CATL
#volvo
#komatsu
#JCB
#LIUGONG
#XCMG
#CAT
#Hitachi
#Hyundai
#Bobcat
Mining Machinery
Mining construction
Earth-moving solutions
BLOCK HANDLING
AGRICULTURE
LOG HANDLING
REHANDLING
ROCK HANDLING
WASTE HANDLING
SLAG HANDLING
Road construction:Earth-leveling operation
Iron and steel plant:Ironstone loading operation
Coal Plant:Coal moving and stacking operation
Mining Area:Earthwork excavation and handling
Construction Site:Gravel stacking and loading
Construction Site:Sand stacking and handling
Iron Ore warehouse hot conditions
Coal plant:cold conditions
High Standard on OH&S
Easy operation
Long Edurance
| Performance | Parameter | ||
| Basic Technical Parameter | Bucket Capacity Range (m³) | 3 | |
| Rated Load (kg) | 5000 | ||
| Opera ng Weight(kg) | ≈18500 | ||
| Max.Tractive Force(KN) | ≥150 | ||
| Breakout Force(KN) | ≥160 | ||
| Overall Dimensions(L×W×H) | 8700X3016X3380 | ||
| Dumping Height(mm) | 3100 / 3400 | ||
| Dumping Distance(mm) | 1100 / 1300 | ||
| Wheel base(mm) | 3260 | ||
| Wheel Tread(mm) | 2290 | ||
| Max.Tum ng Angle(°) | 35 | ||
| Max Gradeability(%) | 53% | ||
| Forward I (Km/h) | 12 | ||
| Forward ll (Km/h) | 32 | ||
| Backward (Km/n) | 24 | ||
| Battery Power System | Battery Type | Lithium iron phosphate | |
| Ambient Temperature(C) | -35~+60 | ||
| Themal Management Mode | Heating film heating, water cooling | ||
| Rated Energy Capacity(kwh) | 282 | ||
| Rated Capacity(Ah) | 228 | ||
| Charging Time | Fastcharging：2.0-2.5h / Slowcharging：8-10h(Based on charger) | ||
| Charging Method | Single gun independent charging/Dual guns charging together | ||
| Service Voltage Range(V) | 618 | ||
| Sevice Life(25℃，100%SOC) | 4000Cycles， Capacity fade ＜30% | ||
| Drive System： | Travel Motor | ||
| Motor Type | Permanent magnet synchroniza ion | ||
| Rated Power (kW) | 120 | ||
| Rated Voltage(V) | 380V | ||
| Transmission Type | Hydraulic | ||
| Transmission Gear | 2 Forward 1 Reverse | ||
| Main Drive | Sprial bevel gear one stage reduction | ||
| Hub Reductor type | Spur gear panet drive | ||
| Tire | 23.5-25-16PR | ||
| Braking System | Hydraulic caliper disc brake | Hydraulic caliper disc brake | |
| Flexible shaft control drum brake | Hydraulic caliper disc brake | ||
| Steering Hydra uic System | Type | Full hydraulic on-load sensing steering system | |
| output volume(Steering Pump) | 80ml/r | ||
| Service Pressure(Mpa) | 15 | ||
| Steering Angle | ±35 | ||
| Sev ce Hydra uic System | Hydraulic Pump Motor： | ||
| Permanent magnet synchronization | Permanent magnet synchronization | ||
| Rated Power (kW) | 90 | ||
| Rated Voltage(V) | 380V | ||
| Output volume(Variable piston pump+Internal gear pump) | 100+80ml/r | ||
| Working pressure(Mpa ) | 18 | ||
| Total Cy de Time | Dump | Lowing(unload) | Total |
| 1.5s | 4.5s | 12.0s | |
| Elect ncal System | Bettery Voltage (24V) | 24 | |
| Battery Capacity(Ah) | 60 | ||
| Lighting Voltage(V) | 24 | ||
| Ol Capacity | Hydraulic Oil (L) | 270 | |
| Transmission Oil (L) | 49 | ||
| Dive/Steering Oil (L) | 28 / 28 | ||
