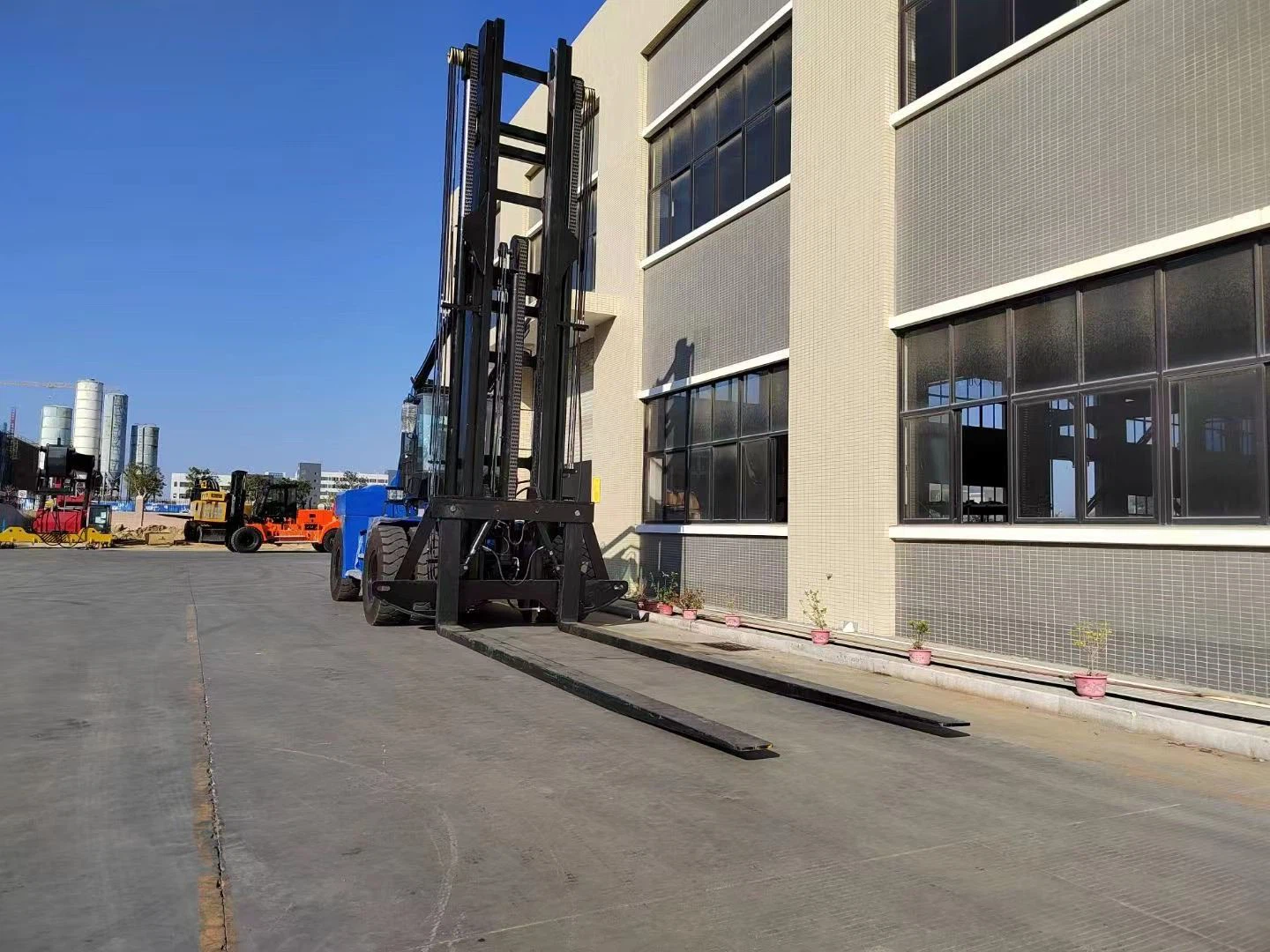

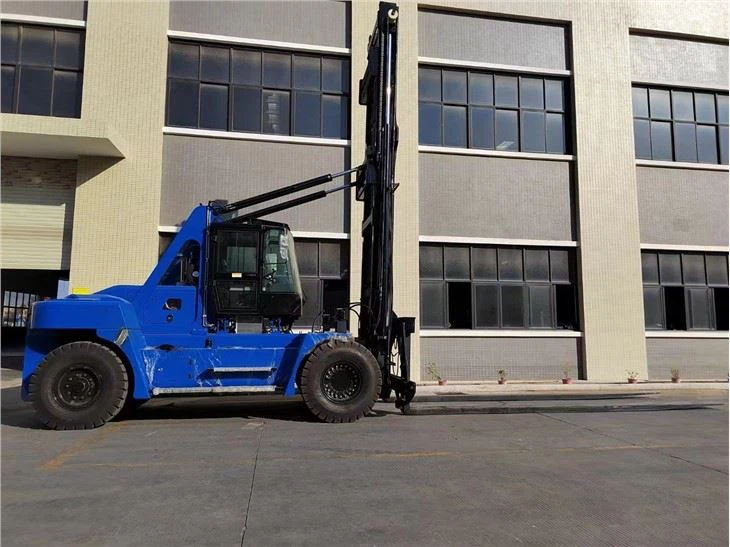

Marina Forklift To Handle Boats In The Marina
Rated capacity:20000kg
Engine: Cummins engine
Hydraulic transmission
Fork with hydraulic positioner & side shifter,customized length, side opening
Lifting height: 10m
SOCMA 20T MARINA FORKLIFT, TO LIFT BOAT IN AND OUT OF WANTER, AS WELL AS LIFTING IT IN AND OUT OF STORAGE
Marine forklifts are used to dry the stacked boats in the storage racks and to lower the boats in/lift out of the water. SOCMA marine forklift has a compact structure and excellent maneuverability. It can be operated around any facility. It is strong and durable enough to lift/lower ships of various sizes and weights.
Negative lift: The term negative lift sounds contradictory, but it actually refers to the ability of the mast and bracket to lower the load below the forklift ground. Negative lift is mainly used in the marine industry, allowing the dock owner to quickly and easily put the boat in the water and immerse the fork in the water to retrieve the boat.
SOCMA yacht handling forklifts provide high-quality standard functions, which are very suitable for your dock and vessel handling needs. These standard features include advanced rubber fork covering system; intuitive electronic joystick control; luxury air cushion seat, etc.
Main specifications for 20t yacht forklift:
Configuration | Unit | Model |
Vehicle configuration | HNF-200 | |
Performance | Rated load | 20000 |
Load center | 1250 | |
Mast tilt angle (front/rear) | º | 3/6 |
Overall dimensions/Length without fork | mm | 6440 |
Width | mm | 3050 |
Height | mm | 8150 |
Mast lifting height | mm | 10000 |
Fork size | mm | 6500*250*110 |
Min. turning radius | mm | 6250 |
Max. travel speed (with load) | Km/h | 26 |
Lifting speed (with load) | mm/s | 260 |
Gradeability (with load) | % | 20 |
Weight | Kg | 47000 |
Tyre | Front | 4X14.00-24-28PR |
Rear | 2X14.00-24-28PR | |
Wheel tread/Front | mm | 2200 |
Rear | mm | 2390 |
Wheelbase | mm | 4000 |
Min. ground clearance | mm | 300 |
Engine | Model | QSL9.3-C220 |
Rated power/rotate speed | KW/r.pm | 162/2200 |
No. of cylinder | 6 |
After-sales Service
Warranty
SOCMA grants our clients a twelve-month-period or 2000-hours warranty for any machine produced from us. During the warranty period, in case the defect of material or workmanship has occurred with spare parts in normal operation, the defective part will be repaired or replaced free of charge, at our discretion.
Spare parts
SOCMA is dedicated to provide our clients with genuine spare parts with the highest quality, exact fitness and appropriate function. With our global distributor network, you are guaranteed with fast deliveries and services, wherever you are. Please submit your spare parts request to us, and list products name, model, equipment serial number, description of required parts. We guarantee that your request will be handled quickly and appropriately.
