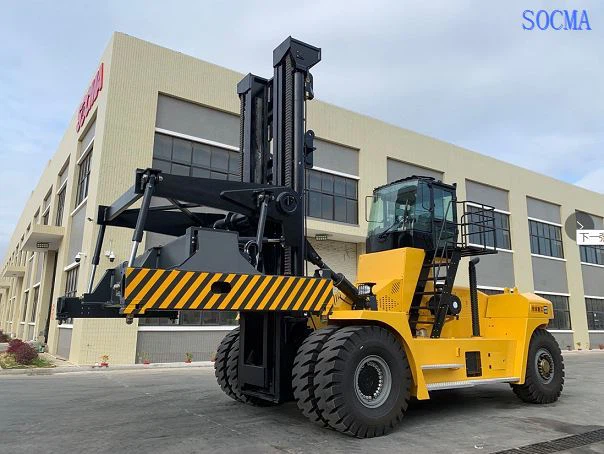

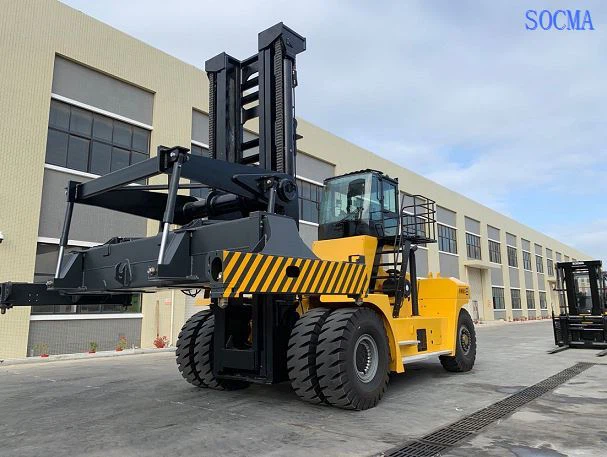

45 Ton Container Handling Forklift Spreader

ISO 20ft and 40ft loaded containers stacker, 45t forklift with telescopic container spreader

1, Overall performance parameters

The design of the container stacking forklift fully reflects the guiding role of market demand. It uses the company's complete forklift production platform, uses the company's forklift research as the technical support, and takes more effective customer service as the design principle. The overall performance parameters are shown in the following table:

2, Characteristic of SOCMA 45t heavy duty forklift

This container forklift is mainly equipped with Cummins, box-type mast, Kessler drive axle, and Dana transmission. The parts are localized, standardized, cost-effective, and accessories are easy to purchase and easy to maintain. It has the characteristics of strong power, reliable performance, high efficiency and energy saving, light operation, flexible steering, and beautiful appearance.

☆ Cummins engine, which is strong power, energy conservation and environmental protection and high efficiency .

☆ Double turbine hydraulic transmission, power shift, convenient operation, big infinitely variable speeds traction.

☆ Adopt double pump confluence hydraulic system, greatly reduce oil consumption. Full hydraulic load sensor steering system, steer lightly and flexibly. The hydraulic oil water cooling radiator ensures the machine thermal equilibrium.

☆ Use long wheelbase and whole frame structure, good stability, large ground clearance, can be used in different working conditions.

☆ In cooperation with The Haixi Research Institute of the Chinese Academy of Sciences, the "Overall Scheme of Structural Optimization", the forklift is verified for stiffness, strength accounting and fatigue life estimation. The finite element mechanical analysis and stress cloud diagram simulation operation are fully adopted to optimize the structural design and ensure the safety of the product.

☆ Equipped with adjustable direction machine, aviation seat Aviation handle pilot control, light and flexible control which make you feel more comfortable when seated;

☆ Luxury cab that is equipped with air conditioning, fire extinguishers, glass hammer, reversing display, small power fan and other equipment.

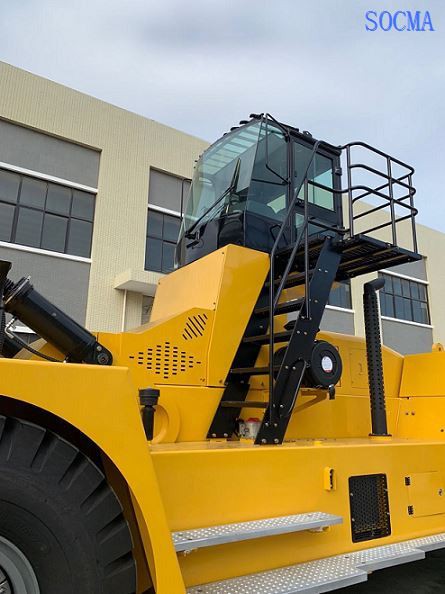

cabin position of the forklift stacker

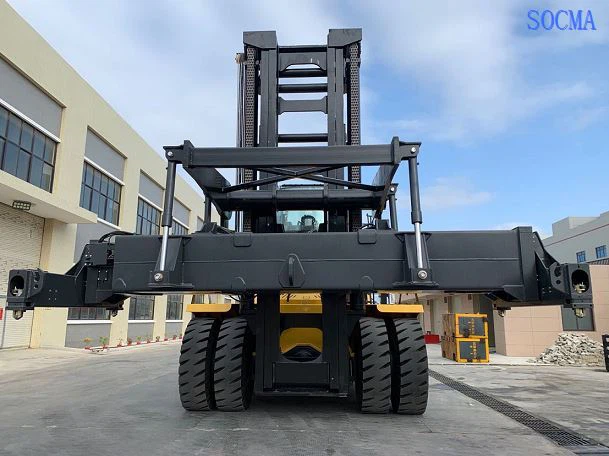

spreader connection

steering wheel for forklift

Safety requirements when driving

a, When driving, the bottom of forks should be kept in 110-200mm distance from the ground, mast must lean back.

b, The goods shall not rise too high when driving, so as not to affect the stability of the forklift truck. In and out of the working places or driving, should pay attention to whether there are barriers over the forklift. Driving with load, shall not operate fork moving cylinder handle, so as to avoid the cargo to drop.

c, If there are people or vehicles when turning, should first issued a traffic signal. High speed or take a sudden turn will lead to tipping, which should be forbidden.

d, Drive the forklift in a minus grade, it is strictly prohibited to flame out and let the forklift truck slide. Forbid taking a sudden brake when driving with load in normal situation.

e, Should obey the traffic rules in the factory when the forklift is running, must have a safe distance with front vehicles.

f, When it is running, the load must be in the lowest position which will not hamper driving, mast must lean back. Not allow to rise the load besides stacking or loading.

g, The height of the goods can not block the driver's sight. If special items influence view, then should drive in low speed when reversing.

h, Prohibited turning in a rampway, also not allow to stretch across a rampway.

i, Forklift truck plant safety driving speed is 5 km/hour, when entering the production workshop areas must be safe driving in low speed.

j, When lifting or driving, people are forbidden to stand in the forks to control the goods.

k, Examine and repair in time if find the problems, never work with problems or keep silence when problems accur.
