45/90R57 Mining Truck Tires Handler

tires Handler,Tyre handlers,big forklifts ,Lifttrucks ,Tire Handler for the mining industry,Tire Handler for the mining industry,

Mining truck is a kind of heavy dump truck used in open pit mine to complete the task of rock earthwork stripping and ore transportation.

SOCMA mining truck tires handler also called mining trucks tire handlers,mining truck tyre handler or mining truck tyre handlers

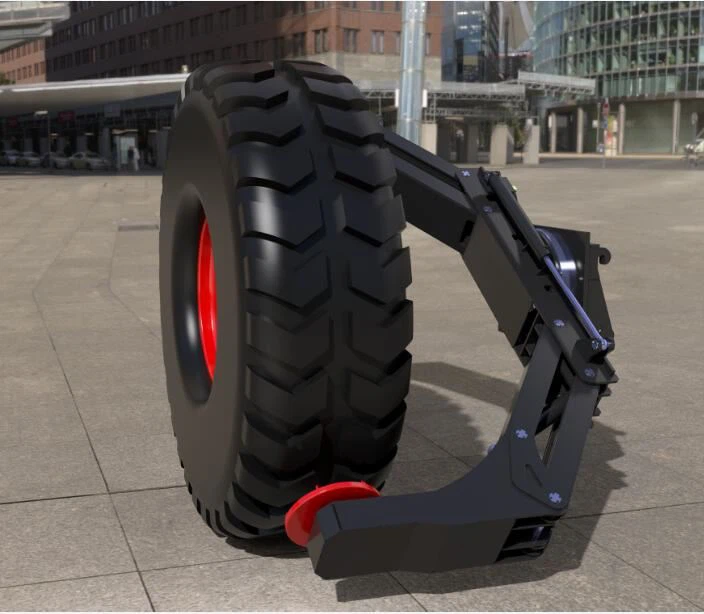

The tire handler is "surgery" for the super large mining truck. The tire handler has two huge clamps firmly clamping the tire more than two meters high. With the help of the staff, the tire is removed, and then a new tire is replaced, which perfectly completes an "operation". The staff of the coal mine said that the large tonnage tire handler of SOCMA is really powerful. It is convenient, comfortable and powerful to operate, which reduces a lot of pressure for our work. Moreover, it is cost-effective than other tire handler and economical and saves us a lot of costs.

Case:tire size of mining truck:45/90R57 use SOCMA 70C-TTC-N160 mining tire handler,which can rotator 360 degree and clamp(pad) of tire handler can rotate 100 degrees,tire handler capacity:7000kg,tire handler opening range:1270 to 4200mm,horizontal center of Gravity HCG:900,Effective thickness:650,self weight of tire handler:3700kg,attached in SOCMAforklift 18 ton to 20 ton,

Electric Drive Rigid Dump Truck,Mining truck total mass:395000kg,mining truck loading capacity:23000kg,curb weight:165000kg

Hot Tags: 45/90r57 mining truck tires handler, China, manufacturers, factory, customized
