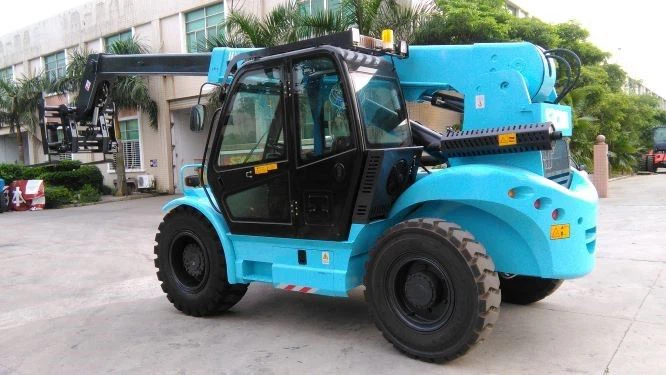

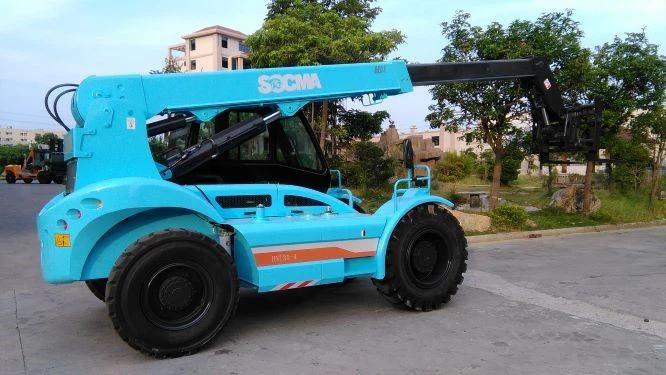

Socma 3.5 Ton Telescopic Forklift for sale
The machine is suitable for the lifting and stacking of cargoes, and can also be used in installation and maintenance of road lighting equipments and installation of various underground pipes(such as water pipes, gas pipes, etc.).
And can be widely applied to factories, stations, docks, freight yard, post and telecommunications, forest, building materials, warehouses and other places.
It is a wide adaptability and high efficiency loading and unloading machine.
Parameter:
| Items | Unit | Deviation allowed | HNT35-4 | ||
| Basic parameter | Rated load | kg | - | 3500 | |
| Load center | mm | - | 500 | ||
| Load capacity @ max. Forward reach | kg | - | 1550 | ||
| Basic boom max. Lifting height | mm | ±1.5% | 4850 | ||
| Max. Lifting height | mm | ±1.5% | 7000 | ||
| Max. Horizontal reach | mm | ±1.5% | 3350 | ||
| Min. Horizontal reach | mm | ±1.5% | 930 | ||
| Min. Ground clearance | mm | ±1.5% | 400 | ||
| Min. Turning radius ( outer tyre center) | mm | ≤105% | 6200 | ||
| Angle | Boom frame upward angle | ° | ±1.0 | 60 | |
| Boom frame downward angle | ° | ±1.0 | -11 | ||
| Operating weight | kg | ±5% | 9000 | ||
| Overall dimension | Length (with fork) | mm | ±2% | 5730 | |
| Width | mm | ±2% | 2390 | ||
| Height | mm | ±2% | 2485 | ||
| Wheel tread | mm | ±1% | 1870 | ||
| Wheel base | mm | ±1% | 2700 | ||
| Rated power / Rated turning speed | kW/rpm | - | 60/2000 | ||
| Driving system | Max. Travelling speed (unloaded) | km/h | ±10% | 30 | |
| Gradeability | % | - | ≥30% | ||
| Tyre | Front (2 pcs) | - | - | 16/70-24 | |
| Rear (2 pcs) | - | - | 10.00-20-16 | ||
| Engine | Dongfeng Cummins | - | National 2 | 4BTA3.9-C80II | |
| - | National 3 | QSB3.9-C80 | |||
Telescopic Forklift information:
Small telescopic forklift
Lifting height is 4m-6m, load capacity is 1.5t-2.5t, 2 or 4 wheel drive, diesel drive.
Universal telescopic forklift
Lifting height of 7 meters to 17 meters, load capacity of 3 tons to 4 tons, 4-wheel all-wheel drive, three steering modes (two-wheel steering, four-wheel steering, crab steering), with or without auxiliary support legs, with or Without body balance, diesel drive.
Rotary telescopic forklift
Lifting height 14m-30m, load capacity 3.2t-5.0t, body 400° or continuous rotation, 4-wheel all-wheel drive, three steering modes (two-wheel steering, four-wheel steering, crab steering), with auxiliary support Legs, diesel driven.
Heavy telescopic forklift
Lifting height is 6m-10m, load capacity is 6t-22t, 4-wheel all-wheel drive, three steering modes (two-wheel steering, four-wheel steering, crab steering), with body balance, diesel drive.
Agricultural telescopic forklift
Lifting height is 5m-10m, load capacity is 2.3-4.5t, 4-wheel all-wheel drive, three steering modes (two-wheel steering, four-wheel steering, crab steering), with or without body balance, diesel drive.
Supporting attachmentsedit
The telehandler is equipped with a fork as standard. In addition to the forks, the telehandler can be equipped with different attachments. The versatility of telehandlers is achieved through thousands of attachments. For different working conditions, different attachments are used to achieve efficient, safe and economical operations. Dedicated telescopic forklift truck sellers can recommend suitable supporting attachments according to the customer's operating requirements. This is also an effective method to identify whether the supplier is qualified and reliable.
Purposeedit
Construction site
Unloading and short-distance transportation of building materials, direct delivery of building materials to the operating point, or feeding of truck cranes and tower cranes.
Handling of various materials on the construction site and site cleaning.
Use forks and spreaders to transport block, strip, and irregular-shaped building materials; use hoppers to transport bulk materials and level the ground; use aerial work platforms for high-altitude installation; use glass suction cups to install curtain walls; etc.
Industrial Enterprises
Handling various materials on rough ground.
Agriculture and Animal Husbandry
Handling of forage bales in the pasture, shredding of forage, feeding of forage, and cleaning of manure.
Forage, straw, etc. are packaged and transported
