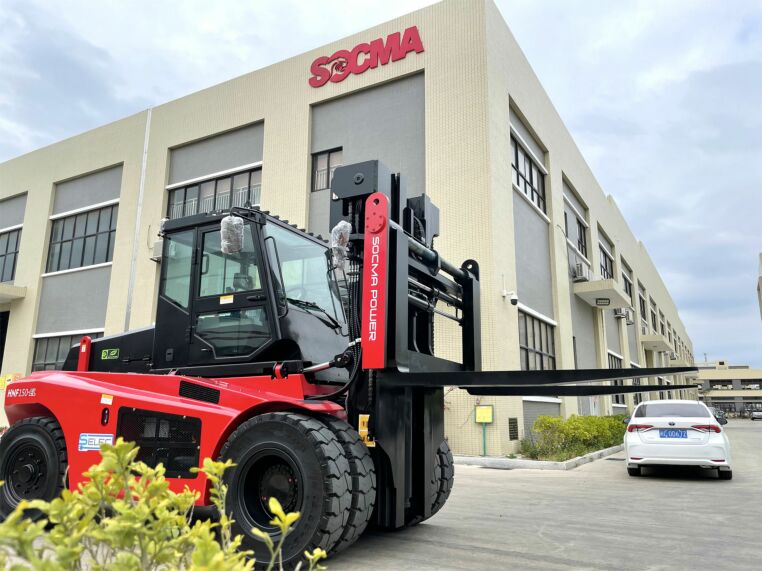

15t Electric Forklift With Lithium Battery
Main parameters of forklift
| NO. | Item | Unit | Value | |
| 1 | Rated lifting capacity | kg | 15000 | |
| 2 | Length | Without fork | mm | 4900 |
| With fork | mm | 6100 | ||
| 3 | Width | Width between wheel | mm | 2350 |
| Frame width | mm | 2250 | ||
| 4 | Height | Height when forks lowered | mm | 3150 |
| Height of overhead guard | mm | 3120 | ||
| Height when forks raised | mm | 4650 | ||
| 5 | Wheelbase | mm | 3000 | |
| 6 | Front overhang | mm | 900 | |
| 7 | Front track | mm | 1710 | |
| 8 | Rear track | mm | 1975 | |
| 9 | Minimum ground clearance | Under mast (without/with load) | mm | 270/235 |
| Under chassis (without/with load) | mm | 260/250 | ||
| 10 | Max. Lifting height | mm | 3100 | |
| 11 | Free lift height | mm | — | |
| 12 | Full free lifting height | mm | — | |
| 13 | Mast tilt angle (front/rear) | ( °) | 6.0/12.0 | |
| 14 | Machine self-weight | kg | 21000 | |
| 15 | Maximum lifting speed without load | mm/s | 320 | |
| 16 | Maximum lifting speed with full load | mm/s | 310 | |
| 17 | Maximum lowering speed without load | mm/s | 320 | |
| 18 | Maximum lowering speed with full load | mm/s | 340 | |
| 19 | Minimum turning radius | mm | 5550 | |
| 20 | Maximum travelling speed without load | km/h | 9 | |
| 21 | Maximum travelling speed with full load | km/h | 8.5 | |
| 22 | Maximum gradeability with full load | % | 10 | |
| 23 | Maximum hook traction at full load | kN | 47 | |
| 24 | Load center | mm | 600 | |
Forklift main parts, safety protection and protective devices
| NO. | Item | Content | |
| 1 | Walking motor | Model / No. 1 / No. 2 | HP129G9-G122W-R8P4/2106Z1759 |
| Insulation class / excitation method | F/permanent magnet synchronous motor | ||
| Work system / protection level | S2/IP54 | ||
| Rated current / rated voltage | 145A/380V | ||
| Rated power / rated speed | 78kW/1200rpm | ||
| 5min (S2) working current | 218A | ||
| Manufacturer | Ningbo Anxin CNC Technology Co., Ltd. | ||
| 2 | Oil pump motor | Model / No. 1 / No. 2 | HP12529-G182W-R4U4/ 2106Z1758 |
| Insulation class / excitation method | F/permanent magnet synchronous motor | ||
| Work system / protection level | S2/IP54 | ||
| Rated power / rated speed | 133A/380V | ||
| Rated current / rated voltage | 74kW/1800rpm | ||
| Manufacturer | Ningbo Anxin CNC Technology Co., Ltd | ||
| 3 | Engine | Model/No. | — |
| Type | — | ||
| Rated power / rated speed | — | ||
| Manufacturer | — | ||
| 4 | Accumulator | Rated capacity / rated voltage | 302Ah/540V |
| Model / Manufacturer | HNZ_175kWh_L302 / CATL | ||
| 5 | Controller | Model / No. 1 / No. 2 | Hi370-5D90A2L/E001016421HY003/E001016421HY004 |
| Rated voltage / rated current | 540V/248A | ||
| Manufacturer | Ningbo Anxin CNC Technology Co., Ltd. | ||
| 6 | Brake | Brake type / brake air pressure | Drum brake/0.8MPa |
| Model / Manufacturer | FY10B.00 /Jiangxi Pingxiang Fangyuan Industrial Co., Ltd. | ||
| 7 | Tire | Front tire model / manufacturer | 12.00-20 / Chaoyang Tire (China) Co., Ltd. |
| Rear tire model / manufacturer | 11.00-20/ Chaoyang Tire (China) Co., Ltd. | ||
| 8 | Seat belt | Model specification / manufacturer | SNJSA01+SKA250PS/ Changzhou Sino Security Technology Co., Ltd. |
| 9 | Forks | Model specification / manufacturer | 180*90*1200SH / Hebei Cascade (China) Co., Ltd. |
| 10 | Chain | Model specification / manufacturer | LH2466 / Zhejiang Hengjiu Transmission Technology Co., Ltd. |
1. Large-capacity lithium iron phosphate battery, safe and efficient, long life
2. The walking adopts the method of motor direct drive bridge, stepless speed change, high transmission efficiency
3. The variable speed control positive flow system based on the prediction of the electronic control handle has good controllability, oil supply on demand, energy saving and high efficiency
4. Automatic idle speed control strategy, automatic identification of idle speed conditions, reduce reactive power loss, and quick response to action recovery
5. Monitor the temperature of the motor, electronic control, and hydraulic oil to realize the thermal balance of the whole vehicle
6. Vehicle status monitoring, fault alarm and fault protection, making the vehicle safer.
