11 Ton Teleshandler Marble Granite handle
video

11 Ton Teleshandler Marble Granite handle

11-ton capacity telescopic forklift machine
suitable for granite and marble handling
Max. Lifting height with full extended boom 10300mm
Send Inquiry
Product Introduction

SOCMA telescopic forklift is a new type of loading and unloading machine, which was equipped with a fork and side shifter. The machine is suitable for the lifting and stacking of cargoes, and can also be used in the installation and maintenance of road lighting equipment and the installation of various underground pipes (such as water pipes, gas pipes, etc.). And can be widely applied to factories, stations, docks, freight yards, post and telecommunications, forests, building materials, warehouses, and other places. It has a wide adaptability high-efficiency loading and unloading machine.

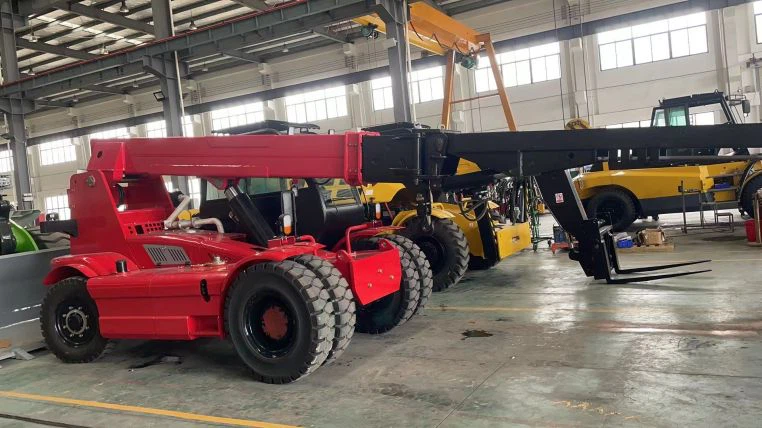

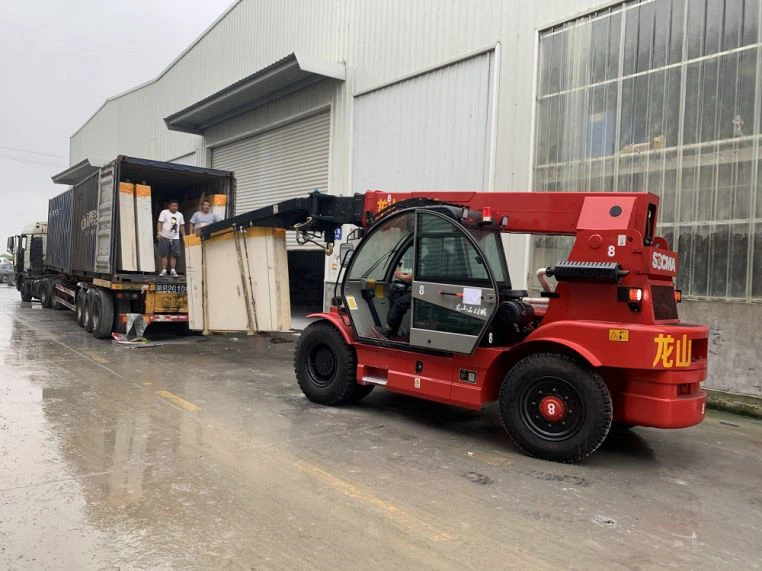

The HNT110 telescopic crane lift truck provides a three-stage telescopic boom, front-wheel drive, rear-wheel steering, and rigid suspension. The 11T crane telehandler uses hydro-mechanical transmission with two-speed forward and two-speed reverse, full hydraulic power steering, and an air-over-oil type drum brake. The working units include the three-stage quadrilateral telescopic boom and a retractable boom. The telescopic crane lift truck is not only applicable to lifting the stone slabs in containers but can be used as a general crane or a fork truck. With high efficiency, the lift truck has found extensive applications in factories, docks, freight yards, forest farms, building materials, warehouses, logistics, and other industries.


ItemUnitSOCMA HNT-110Remark
Rated loadkg11000
Operating weightkg13000
Max. Lifting height of the main hookmm7605distance from the main hook to the   ground
Max. lifting height of the complete armmm10300front point hoist
Wheel basemm2988
Front treadmm1638
Rear treadmm1845
Min. ground clearancemm310
Overall lengthmm5288Without   hook
Overall widthmm2350
Overall heightmm2715
Height of the cabmm2400
Length of rear overhangmm1055
Max. outreach of the main hookmm4800horizontal direction
Max. outreach of the complete armmm7900horizontal direction
Tipping angle of hook, up/down°22°/24°
Tipping angle of big arm, up/down°-14°/43°
Min. turning radiusmm6800
Max. grade ability°≥20%
Max. travelling speedKm/h25
Front wheel
11.00-20
Rear wheel
9.00-20
