Furnance Tending Vehicle For Aluminum Company

Furnance Tending Vehicle For Aluminum Company

Furnance tending vehicle for aluminum company,furnance-charging vehicle for metal smelting industry

Chat Now

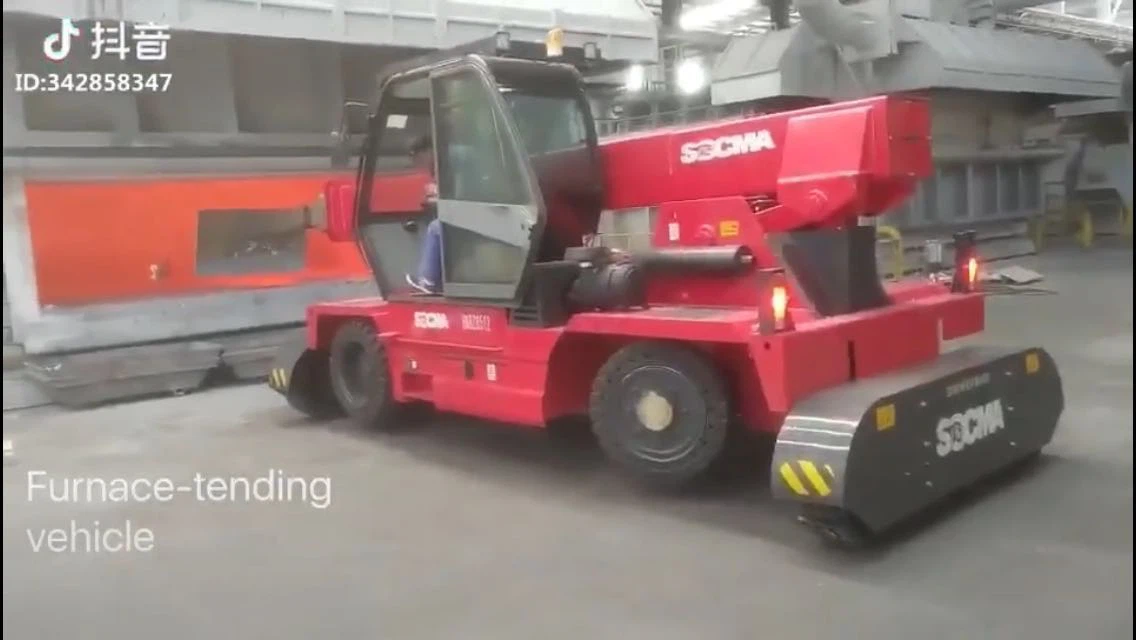

    Furnance tending vehicle

    Specifications of furnace charging vehicle

    ITEM

    ITEM DESCRIPTION

    UNIT

    HNF-120FT

    Features

    1.1

    Rated Load

    Q(t)

    7

    1.2

    Load center

    c(mm)

    600

    1.3

    Wheelbase

    y(mm)

    3000

    Weight

    2.1

    Weight

    kg


    Chassis

    3.1

    Tyre Specs:Front


    10.00x20/16PR

    3.2

    Tyre Specs:Rear


    10.00x20/16PR

    3.3

    Tyres Qty,front/rear(X-drive wheels)


    4×/2

    3.4

    Wheel tread:Front

    b10(mm)

    1677

    3.5

    Wheel tread:Rear

    b11(mm)

    2013

    Dimension

    4.1

    Mast/carriage tilt angle(front/rear)

    Degree

    4.5°/9°

    4.2

    height(fork lowering)

    h1(mm)

    3000

    4.3

    Mast lifting height
     (full free lift)

    h3(mm)

    1400

    4.4

    Overall height(with bucket)

    l1(mm)

    8100

    4.5

    Fork front vertical surface to the rear end of the vehicle

    l2(mm)

    4550

    4.6

    Overall width

    b1/b2(mm)

    4000

    4.7

    Bucket dimension

    s/e/l(mm)

    4000x3000x1200

    Performance

    5.1

    Travel speed(with load/without load)

    km/h

    23/26

    5.2

    Gradeablity(with load/without load)

    %

    25

    5.3

    Driving brake


    Caliper disc brake

    Engine

    6.1

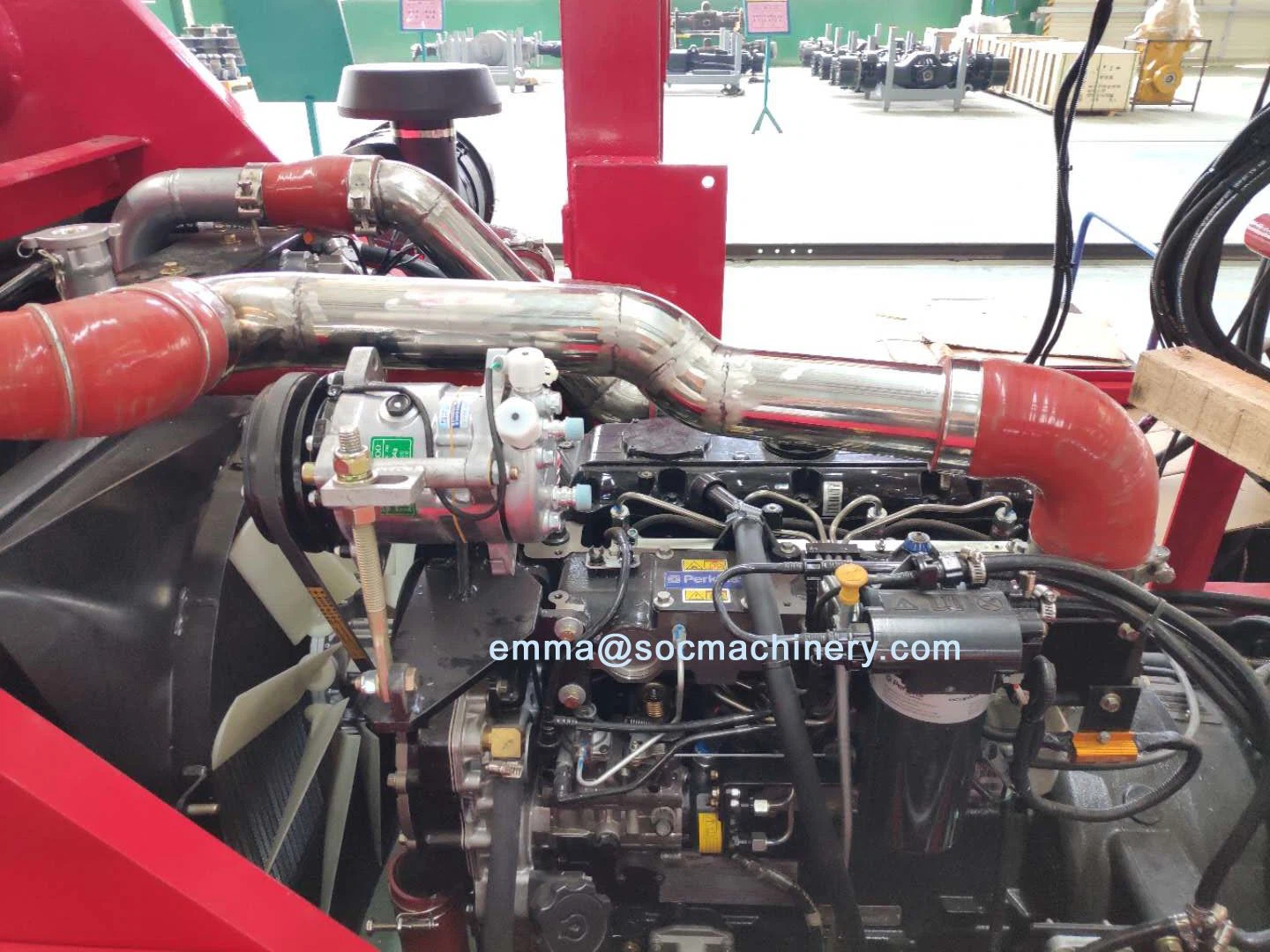

    Engine brand/model


    QSB4.5-C130 Dongfeng Cummins

    6.2

    ISO 1585 Engine power

    KW

    97

    6.3

    Rated rotor speed

    min-1

    2200

    6.4

    No.of Cylinder

    cm3

    4

    others

    7.1

    Control type for driving


    Hydraulic torque



    Hot Tags: telescopic charging truck, China, manufacturers, factory, customized




Hot Tags: furnance tending vehicle for aluminum company, China, manufacturers, factory, customized
