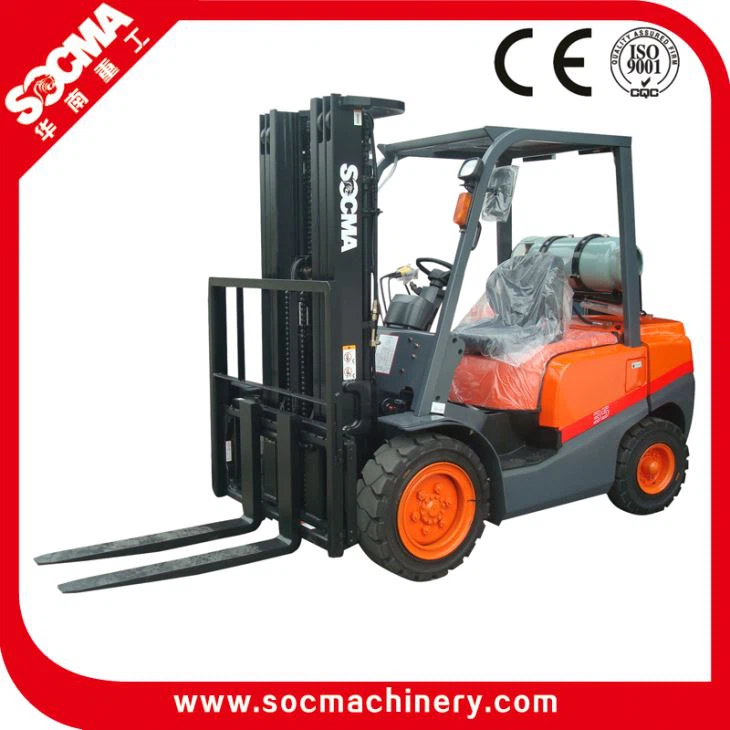

3.5 Ton 3.5t LPG Forklift

3.5T LPG Forklift Truck

Description
SOCMA gasoline forklift truck mainly includes FG35T, FG40T, FG45T and FG50T models. It has a float type body with a double damping system. This petrol forklift is of smaller turning radius and perfect streamline outline. With good performance, it is suitable for loading heavy cargoes. In consideration of the exhaust gas emission and noise problem, this counterbalance forklift truck is usually used in the outdoors. The gasoline engine is characterized by small dimension, light weight, high output power, low noise, small vibration and low price. SOCMA is a professional manufacturer and supplier of petrol forklifts in China. Our company is also committed to producing 1.5-10T diesel forklift truck and 1.5-4T electric forklift. We can manufacture forklift trucks according to customers' requirements.

· Competitive Advantages

· We have got 13 patent certificates. Our company is one of the state-level high-tech enterprises. It is also the engineering and technological research center of industrial forklift truck.

· The engine of gasoline forklift truck is energy efficient and powerful. We provide high-quality and efficient maintenance service.

· SOCMA 3.5T petrol forklift is designed to meet a variety of safety standards and specifications. It can meet the needs of various harsh working conditions.

· With superior operating performance, the gasoline forklift truck can reduce fatigue. Integrated operation system makes it easy to manipulate.

· The opening angle of internal combustion engine hood can increase 83° to the maximum. This facilitates point inspection.

· The engine hood of this petrol forklift is equipped with an air spring device, so it can be opened and closed easily and is convenient for maintenance periodically.

Main Parts
3.5T gasoline forklift truck is mainly made up of engine, transmission, operating control device, working device, hydraulic system and electric system.

· Attentions

· Customers need to fully know the working environment, the maximum load and the maximum lifting height of petrol forklift trucks and then choose appropriate models and configurations.

· Only the drivers who have been trained and hold driving license can drive this forklift truck.

· Check each control and alarm device before driving the gasoline forklift truck. If there is damage or defect, it must be operated after repair.

· Stable starting, steering, driving, braking and stopping are quite necessary. When we drive the 3.5T petrol forklift on wet or slippery road, we need to slow down while steering.

· The pallet fork should insert below the cargoes and make cargoes distribute evenly on the fork. It is prohibited to use a single fork tip to pick the cargoes.

· Customers need to pay attention to daily maintenance of gasoline forklift trucks.

Packaging and Transportation
Shipping By Container.

Features	1	Manufacturer			SOCMA
	2	Model		Power shift T/M	FG35T
				Manual shift T/M	FG35C
	3	Load capacity		kg	3500
	4	Load center		mm	500
	5	Power unit			Gasoline
	6	Operator type			Driver/seat
	7	Tire type	Front/rear		Pnenumatic
	8	Wheel	Front/rear		2/2
Dimension	9	Max. lifting height		mm	3000
	10	Free lift		mm	150
	11	Fork size	L*W*T	mm	1070*125*50
	12	Tilt range	Mast forward/backward	deg	6/12
	13	Overall length(without fork)		mm	2720
	14	Total width		mm	1285
	15	Mast height (fork lowering)		mm	2075
	16	Overall height fork raised	With backrest	mm	4250
	17	Height to head guard		mm	2140
	18	Turning raduis(outside)		mm	2460
	19	Front face of fork to front axle		mm	485
	20	Min. right angle stacking aisle	without load length&clearence	mm	2940
Performance	21	Speed	Max Travelling         full/no load	km/h	18/19.5
	22		Lifting              full/no load	mm/s	450/500
	23		Lowering         full/no load	mm/s	450/420
	24	Max.drawbar pull	Power shift T/M      full/no load	kg	1800/1000
			Manual shift T/M       full/no load	kg	1900/1000
	25	Gradeability at 1.6km/h	Power shift T/M      full/no load	%	17/20
			Manual shift T/M       full/no load	%	17/20
Weight	26	Truck weight		kg	4610
	27	Weight  distribution	Full  load              front/rear	kg	7260/850
	28		No  load               front/rear	kg	1840/2770
Frame	29	Tires	Number	front/rear	2/2
	30		Model	front axle	28x9-15-12PR
	31			rear axle	6.50-10-10PR
	32	Wheelbase		mm	1700
	33	Tread	Front/rear	mm	1060/970
	34	Ground clearence	At lowest point(mast)	mm	120
			Frame	mm	135
	35	Brake	Service  brake		Hydraulic-foot peda
			Parking brake		Mechanical-hand lever
Engine	36	Battery	Voltage/capacity	V/AH	12/60
	37	Engine	Model		Nissan K25
			Rated power	PS(kw/rpm)	51/2300(37.4/2300)
			Rated torque	kg-m    max.(N.m)	18/1600(177/1600)
			Number of cylinders		4
			Placement	L	2.488
			Fuel tank capacity	L	70
	38	Transmission	Speed forward/backward	Power shift T/M               Manual shift T/M	1-1 power shift T/M                           2-2 power shift T/M
	39	Operating pressure	Hydraulic system pressure	kg/cm²	180

Features	1	Manufacturer			SOCMA
	2	Model		Power shift T/M	FG35T
				Manual shift T/M	FG35C
	3	Load capacity		kg	3500
	4	Load center		mm	500
	5	Power unit			Gasoline
	6	Operator type			Driver/seat
	7	Tire type	Front/rear		Pnenumatic
	8	Wheel	Front/rear		2/2
Dimension	9	Max. lifting height		mm	3000
	10	Free lift		mm	150
	11	Fork size	L*W*T	mm	1070*125*50
	12	Tilt range	Mast forward/backward	deg	6/12
	13	Overall length(without fork)		mm	2720
	14	Total width		mm	1285
	15	Mast height (fork lowering)		mm	2075
	16	Overall height fork raised	With backrest	mm	4250
	17	Height to head guard		mm	2140
	18	Turning raduis(outside)		mm	2460
	19	Front face of fork to front axle		mm	485
	20	Min. right angle stacking aisle	without load length&clearence	mm	2940
Performance	21	Speed	Max Travelling         full/no load	km/h	18/19.5
	22		Lifting              full/no load	mm/s	450/500
	23		Lowering         full/no load	mm/s	450/420
	24	Max.drawbar pull	Power shift T/M      full/no load	kg	1800/1000
			Manual shift T/M       full/no load	kg	1900/1000
	25	Gradeability at 1.6km/h	Power shift T/M      full/no load	%	17/20
			Manual shift T/M       full/no load	%	17/20
Weight	26	Truck weight		kg	4610
	27	Weight  distribution	Full  load              front/rear	kg	7260/850
	28		No  load               front/rear	kg	1840/2770
Frame	29	Tires	Number	front/rear	2/2
	30		Model	front axle	28x9-15-12PR
	31			rear axle	6.50-10-10PR
	32	Wheelbase		mm	1700
	33	Tread	Front/rear	mm	1060/970
	34	Ground clearence	At lowest point(mast)	mm	120
			Frame	mm	135
	35	Brake	Service  brake		Hydraulic-foot peda
			Parking brake		Mechanical-hand lever
Engine	36	Battery	Voltage/capacity	V/AH	12/60
	37	Engine	Model		Nissan K25
			Rated power	PS(kw/rpm)	51/2300(37.4/2300)
			Rated torque	kg-m    max.(N.m)	18/1600(177/1600)
			Number of cylinders		4
			Placement	L	2.488
			Fuel tank capacity	L	70
	38	Transmission	Speed forward/backward	Power shift T/M               Manual shift T/M	1-1 power shift T/M                           2-2 power shift T/M
	39	Operating pressure	Hydraulic system pressure	kg/cm²	180
