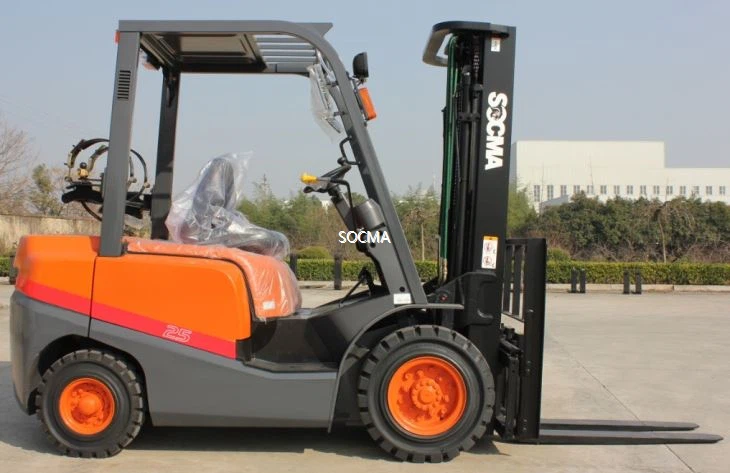

2t Gasoline Forklift, Nissan Engine

Three Features for 2t gasoline forklift:



1,  2t gasoline forklift is easy maintenance

Detachable side covers for convenient inspection and simple maintenance.Intergral layout of electrical parts and other system devices.



2, 2t forklift with gasoline power is easier entry and exit form an extra-wide step

The secure step with enlarged foot space enables greater comfort and less fatigue while entering and exiting the vehicle.



3, 2t gasoline forklift cleaner,more efficient Engines

New engines,compliant with worldwide stage IIIA emission regulations



Standard specifications for the 2t forklift and gasoline power:

2T Gasoline Forklift  Specifications (Power Shift)
Features				Unit	FG20T
Performance	Load Capacity			kg	2000
	Load   center			mm	500
	Max.   lifting heigh			mm	3000
	Free   lift			mm	160
	Speed	Max   Travelling	full load	km/h	17
			no load	km/h	19
		Lifting	full load	mm/s	550
			no load	mm/s	580
		Lowering	full load	mm/s	450
			no load	mm/s	550
	Turning   raduis(outside)			mm	2170
	Min. right angle stacking aisle			mm	2615
Dimension	Overall length(without   fork)			mm	2460
	Total   width			mm	1150
	Mast   height (fork lowering)			mm	1995
	Overall height fork raised (With backrest)			mm	4030
	Height   to head guard			mm	2120
	Fork size	L×W×T		mm	1070×122×40
	Tilt range	Mast   forward/backward		deg	6/12
	Ground clearence	At lowest point(mast)		mm	110
		Frame		mm	115
	Wheelbase			mm	1600
	Tread	Front		mm	970
		Rear		mm	970
	Truck   weight(no load)			kg	3240
Tires	Front				7.00-12-12PR
	Rear				6.00-9-10PR
Engine	Model				Nissan K21
	Rated   power			kw/rpm	31.2/2250
	Rated   torque			Nm/rpm	144/1600
	Number   of cylinders				4
	Displacement			L	2.065
