16 Ton Forklift Truck With Spreader For 40'' Empty Containers Replace Empty Container Handler
16 Ton forklift truck with spreader for 40'' empty containers replace empty container handler.

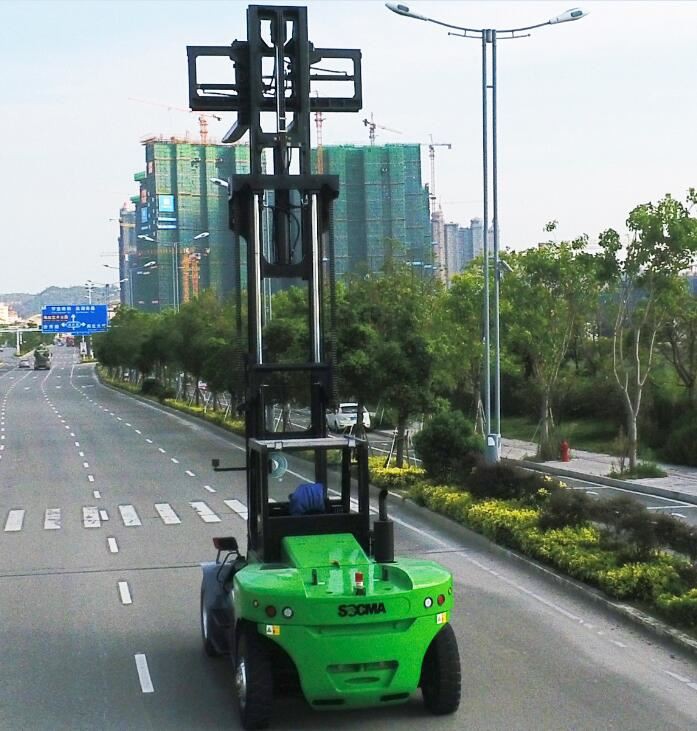

16 ton forklift with SOCMA telescopic spreader can lift 4 layer empty 20GP and 40HQ containers
https://youtu.be/AyW6s1O_-oQ<br />

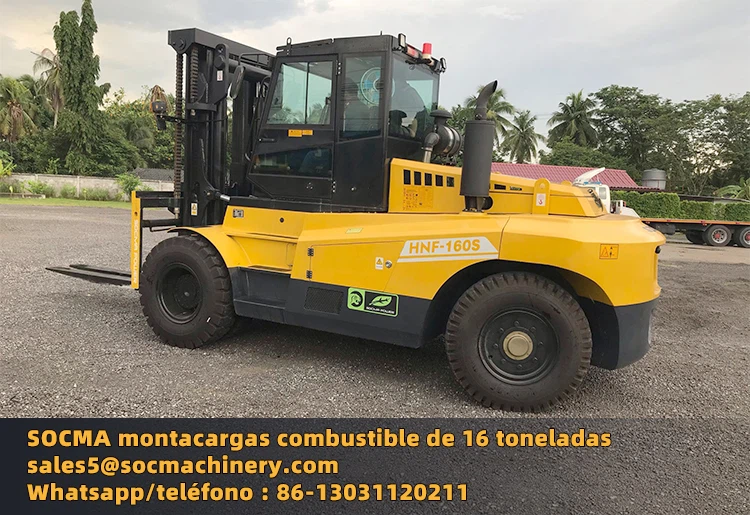

POS | ITEM DESCRIPTION | UNIT | HNF-160S |
Character | Rated Capacity | kg | 16000 |
Load Centre | mm | 600 | |
Front Overhang | mm | 860 | |
Wheelbase | mm | 3300 | |
Weight | Self-weight | kg | 19500 |
Axle load, full loaded (front/rear) | kg | 24215/2785 | |
Axle load, without loaded (front/rear) | kg | 6375/8625 | |
Chassis | Tyre, front | 12.00x20/16PR | |
Tyre, rear | 11.00x20/16PR | ||
Wheels, numbers front/rear(x=driving wheel) | 4×/2 | ||
Wheel tread, front | mm | 1740 | |
Wheel tread, rear | mm | 2013 | |
Basic dimension | Mast Tilt Angle (front/rear) | ° | 6/12 |
Mast height (fork lowered) | mm | 3140 | |
Lifting height | mm | 3000 | |
Overall length (with fork) | mm | 6355 | |
Overall width | mm | 2250 | |
Fork size | mm | 1800x180x90 | |
Carrier width | mm | 2280 | |
Min. ground clearance-mast, full loaded | mm | 225 | |
Min. ground clearance-center of wheel base | mm | 350 | |
Min. turning radius | mm | 4450 | |
Parameter | Speed (full loaded/without load) | km/h | 23/26 |
Max. lifting speed (full loaded/without load) | m/s | 220/270 | |
Gradeability (full loaded/without load) | % | 20/22 | |
Service brake | Disc brake | ||
Engine | Brand | 6BT5.9-C130 | |
Rated power | KW | 97 | |
Rated rotor speed | min-1 | 2200 | |
No. of Cylinder | cm3 | 6 | |
Others | Transmission gears(front/rear) | 2/2 |
