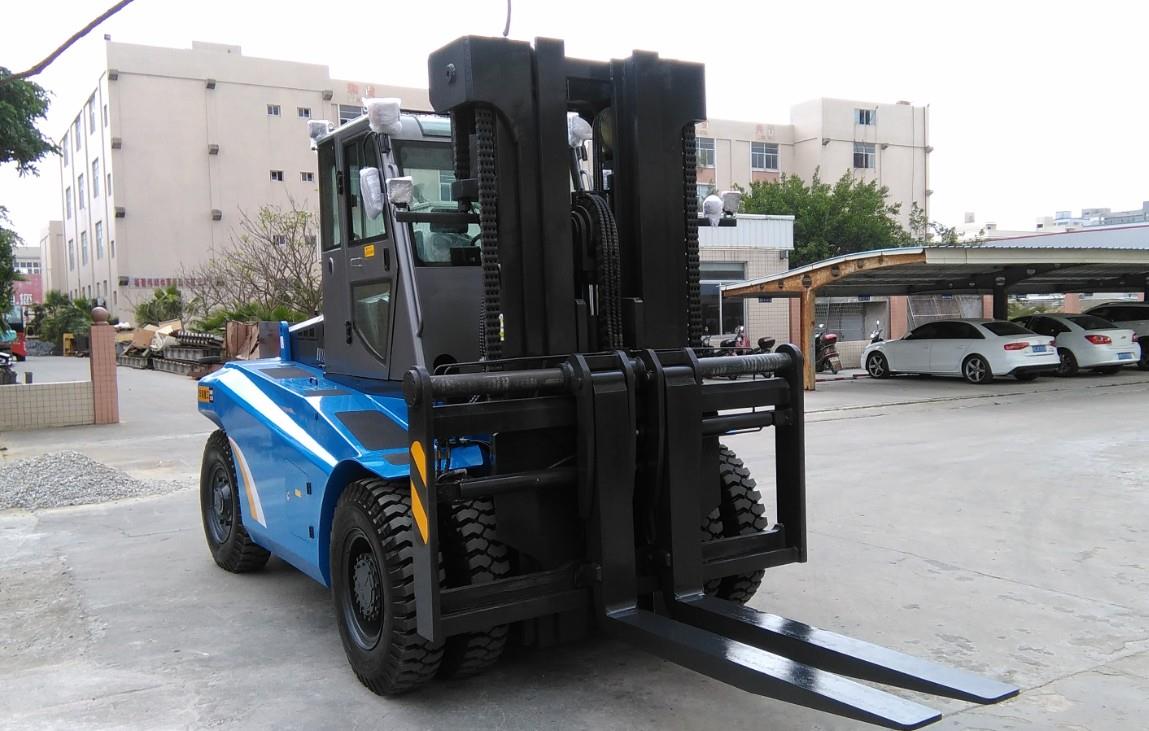

12T FORKLIFT WITH FREE MAST

Name: China Customized 12T FORKLIFT WITH FREE MAST Manufacturers and Factory - Southchina Machinery
Brand: SOCMA
SKU: 58458086

12T FORKLIFT WITH FREE MAST
with Cummins Engine
with electric transmission
3m lifting height,free mast
1200mm fork length
full cabin with AC and heater
with joystick control

Send Inquiry

Download

Product Introduction

CHARACTERISTICS FOR 12T DIESEL FORKLIFT WITH FREE MAST:

Engine for SOCMA 12t forklift: low oil consumption, high quality turbocharged engine, good power performance, big torque reserves, has strong power, energy conservation and environmental protection.

Steering system: adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable.

Transmission & torque converter for the 12t diesel forklift: imported technology, reliable performance, convenient maintenance, smooth transmission, and convenient operation.

Braking system: use mature product from professional manufacturer, disc brakes, heat dissipation faster, light, simple structure and easy to adjust. Especially have very good thermostability performance when heavy loaded, braking effect stable.

Control system for HNF-120 forklift: pilot valve control device to make the work efficiency and reduce drivers’ labor intensity.

Cooling system: adopt independent transmission oil and hydraulic oil cooling, increasing system stability.

Frame structure: Exquisite workmanship & firm box-type frame, improve the transverse, longitudinal stability of vehicles. The vehicle get through the 3D finite element analysis, superior structure, reliable quality; the main welding parts through the nondestructive testing, effective coordination with the reinforced structure、bridge、box.

Fork: standard with hydraulic fork positioner, easy operation and reduce drivers’ labor intensity.

Mast: box-type internal-external full free mast, special all-round roller bearings, increase lifting performance.

Cab: With full cabin and AC.

STANDARD SPECIFICATIONS of 12T DIESEL FORKLIFT:

Configuration	Model	Unit	CPCD120
Configuration	Vehicle configuration	Unit	HNF-120
Character	Rated Capacity	t	12
	Load Centre	mm	600
	Front Overhang	mm	860
	Wheelbase	mm	3000
Weight	Self weight	kg	18000
	Axle load, full loaded (front/rear)	kg	24215/2785
	Axle load, without loaded (front/rear)	kg	6375/8625
Chassis	Tyre, front		10.00x20/16PR
	Tyre, rear		10.00x20/16PR
	Wheels, numbers front/rear(x=driving wheel)		4×/2
	Wheel track, front	mm	1677
	Wheel track, rear	mm	2013
Basic dimension	Mast Tilt Angle (front/rear)	°	6°/12°
	Mast height (fork lowered)	mm	3090
	Lifting height	mm	3000
	Mast height (fork lift)	mm	4590
	Overall length (with fork)	mm	6055
	Overall width	mm	2250
	Fork size	mm	90x180x1200
	Carrier width	mm	2200
	Min. groundclearance-mast, full loaded	mm	225
	Min. groundclearance-center of wheel base	mm	350
	Min. turning radius	mm	4450
Parameter	Speed (full loaded/without load)	km/h	23/26
	Max. lifting speed (full loaded/without load)	m/s	220/270
	Gradeability (full loaded/without load)	%	20/22
	Service brake		Disc brake
Engine	Brand		DF CUMMINS QSB4.5-C130
	Rated power	KW	97
	Rated rotor speed	min^-1	2200
	No.of Cylinder	cm³	6
