Slagging Truck

Slagging Truck

This product is designed for the cleaning of slag which are generated in the smelting and holding furnaces during the metal smelting process. HNBZ8512 is a multipurpose wheel type telescopic slagging truck, with three-section telescopic boom, the maximum lifting height 3200mm, the slag power is...

Chat Now

    This product is designed for the cleaning of slag which are generated in the smelting and holding furnaces during the metal smelting process.

    HNBZ8512 is a multipurpose wheel type telescopic slagging truck, with three-section telescopic boom, the maximum lifting height 3200mm, the slag power is biggerr than 10KN, the maximum extension distance 8500mm, all the slag action is operated through hydraulic pilot. It is very suitable for smelting furnace and holding furnace slag, stirring and clearing furnace.
    1, Adpot Donefeng CUMMINS  turbocharge diesel engine, China stage III emissions, power strong, energy saving and environmental protection, meet the efficient working requirements.
    2, Adpot fixed - shaft type hydraulic transmission, the traction force of the combined condition is large, and the double-variable system is more reliable. Twin-turbo hydraulic torque converter stepless speed change; single-lever control transmission system, two forward and two backward gear shift, operation is easier.
    3, Adopt dual-pump confluence working hydraulic system, a significant reduction in fuel consumption and energy consumption.
    4, Adopt full hydraulic coaxial flow amplification steering system, the turning radius of rear axle is small, steering light and flexible.
    5, Adopt front wheel drive, rigid suspension, rear axle steering structure. The front axle spiral bevel gear and the wheel side planetary gear increase toqrue, big load capacity. The rear axle adopts the transverse hydraulic cylinder type steering mechanism, which is helpful to reduce the steering resistance, reduce the tire wear and improve the ride comfort.

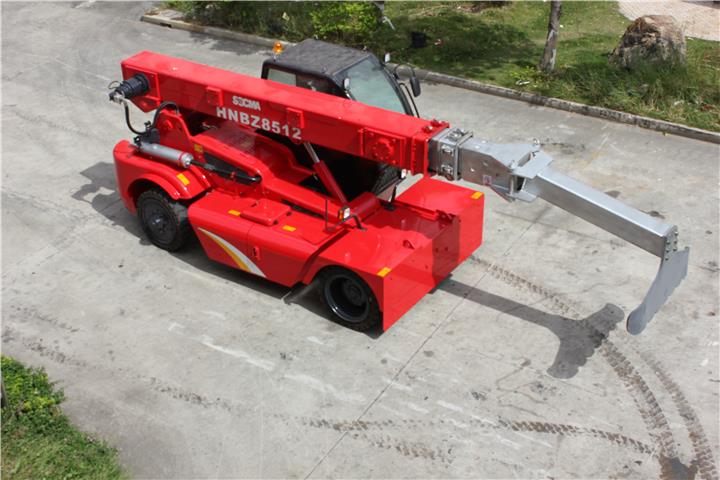

    Slagging Truck

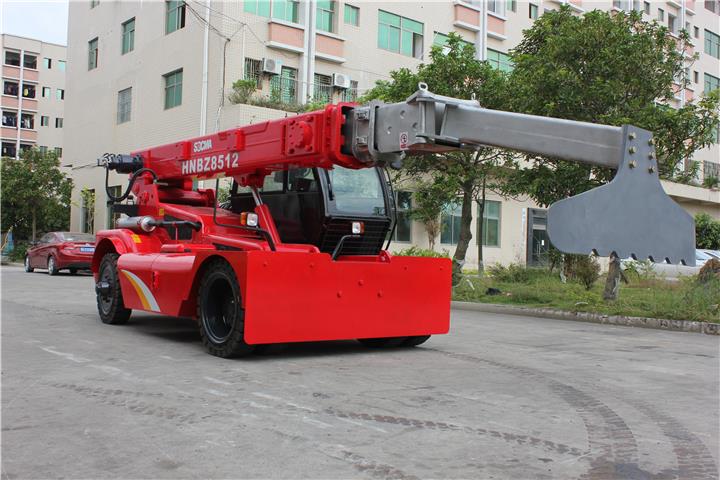

    Slagging Truck

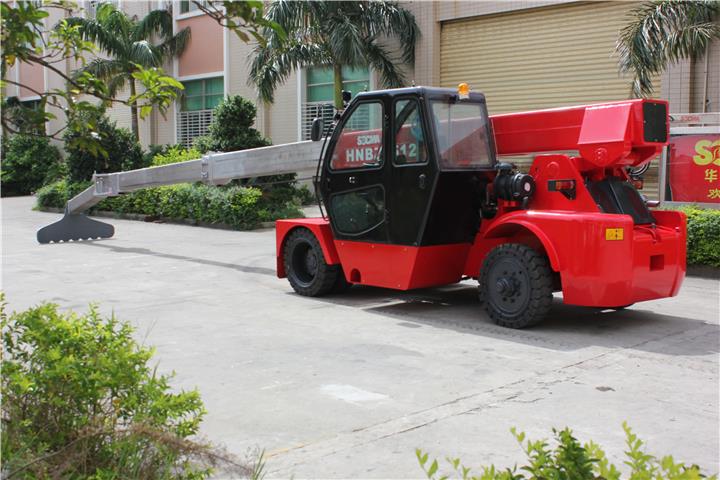

    Slagging Truck

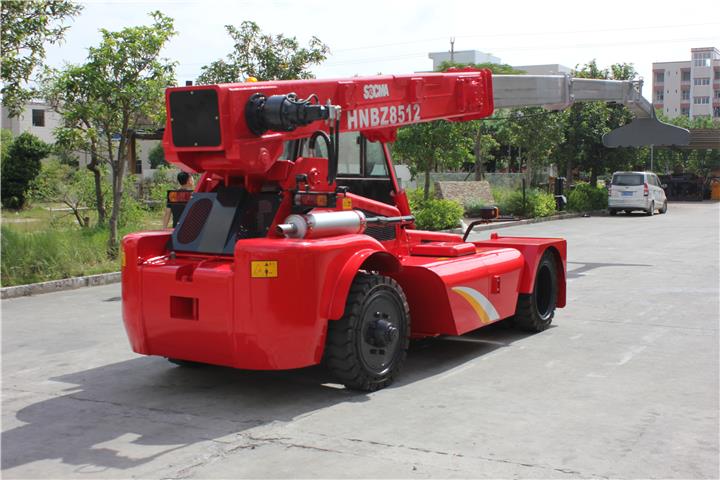

    Slagging Truck


    Parameter of Slagging Truck

    Performance

    Specifications

    Basic parameter

    Overall width(The boom is fully retracted)

    7100 mm

    Basic boom length

    4490 mm

    Max. boom length(Fully extended)

    13000 mm

    Width

    2340 mm

    Height

    Cab height

    2360 mm

    Height when the boom fully extended

    3200 mm

    Min. ground clearance

    160 mm

    Max. extension

    8600 mm

    Min. extension

    2600 mm

    Wheelbase

    3000 mm

    Wheel tread

    Front

    1640 mm

    Rear

    1630 mm

    Min. outside turning radius≤105%

    7000 mm

    Approach angle

    20 °

    Departure angle

    15 °

    Range elevation

    Max. elevation angle of boom

    7 °

    Min. elevation angle of boom

    -12 °

    Truck weight

    11000 kg

    Slag removing force

    Level≥90%

    10 kN

    Vertical≥90%

    10 kN

    Engine

    Model

    QSB3.9-C100-31

    Rated power/rotate speed

    74kW/2400 rpm

    Max. torque/rotate speed

    330N.m/1400~1600 rpm

    Transmission system

    Transmission way

    Power shift, fixed-axis type, hydraulic transmission

    Gear (forward / backward)

    2月2日

    Max. travelling speed

    28km/h

    Max. drawbar pull≥90%

    30kN

    Gradeability

    15%

    Oil tank capacity

    Hydraulic oil tank capacity

    230L

    Fuel oil tank capacity

    230L

    Brake system

    Parking brake

    Hand expanding shoe type brake

    Service brake

    Gas cap oil brake

    Brake system air pressure

    0.684-0.785 MPa

    Hydraulic system

    Hydraulic system pressure

    18MPa

    Joystick system pressure

    0.30MPa

    Extend / retract speed

    1150/1100 mm/s

    Up / down speed

    3/3°/s

    Steering system

    Steering type

    Fully hydraulic load sensing steering system

    System pressure

    14MPa

    Tyre

    Front tyre (front tyre 4, solid tyres)

    8-20

    Rear tyre (rear tyre 2, solid tyres)

    8-20
