135-720 Forklift Crane Data

135-720 Forklift Crane Data

HNFC135-720 forklift crane is a integrated new products launching by SOCMA Forklift capacity is 13.5tons, crane capacity is 72 ton*m, the crane can be 360 degree rotated. This new product is not a simply forklift plus crane. But a perfect integration of forklift and crane. HNFC135-720 Parameter...

Chat Now

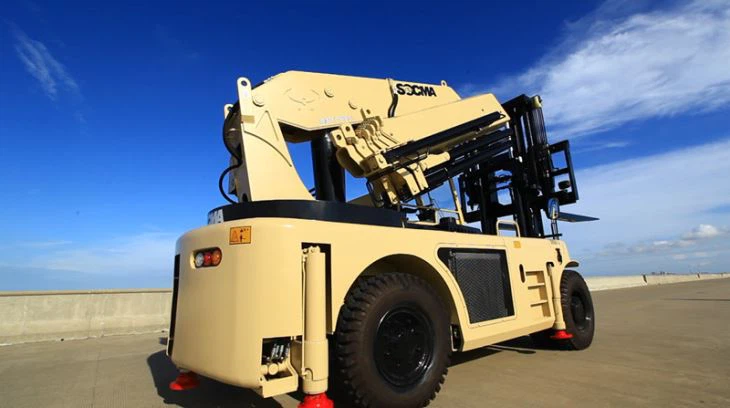

    HNFC135-720 forklift crane is a integrated new products launching by SOCMA

    Forklift capacity is 13.5tons, crane capacity is 72 ton*m, the crane can be 360 degree rotated.

    This new product is not a simply forklift plus crane.

    But a perfect integration of forklift and crane.



    HNFC135-720  Parameter

    POS

    ITEM DESCRIPTION

    UNIT

    HNFC135-720

    Characteristics

    1.1

     Capacity

    Q(t)

    13.5

    1.2

     Load center

    c(mm)

    600

    1.4

      Wheel base

    y(mm)

    3250

    Weight

    2.1

      Truck Weight

    kg

    21950

    Chassis

    3.1

     Tyre Specs.:   Front



    10.00x20/18PR

    3.2

     Tyre Specs.:   Rear



    10.00x20/18PR

    3.3

     Tyres Qty,   front/rear                     (X-drive   wheels)



    4×/2

    3.4

     Wheel tread:   Front

    b10(mm)

    1677

    3.5

     Wheel tread:   Rear

    b11(mm)

    2013

    Dimension

    4.1

     Mast/carriage   tilt angle(front/rear)

    °

    6°/12°

    4.2

     Mast height(fork   lowering)

    mm

    3188

    4.3

     Max. lifting   height

    h3(mm)

    3000

    4.4

     Overall   height(fork raised)

    h4(mm)

    4600

    4.5

     Overall length   (with 2000mm forks)

    l1(mm)

    7600

    4.6

     Fork front   vertical surface to the rear end of the vehicle

    l2(mm)

    5600

    4.7

     Overall Width

    b1/b2(mm)

    2250

    4.8

     Fork dimension

    s/e/l(mm)

    90x180x2000

    4.9

     Fork carriage   width

    b3(mm)

    2200

    4.10

     Mast Min ground   clearance              (with load)

    m1(mm)

    225

    4.11

     Outrigger min   ground clearance(with load)

    m2(mm)

    320

    4.12

     Min.Turning   radius

    Wa(mm)



    Performance

    5.1

     Travel   speed                                         (with load/without load)

    km/h

    23/26

    5.2

     Max.lifting   speed                                      (with load/without load)

    m/s

    310/340

    5.3

    Gradeablity                    (with load/without load)

    %

    20/22

    5.4

    Driving brake



    clamp disco brake

    Engine

    7.1

    Engine brand/model



    YC6J150-T301

    7.2

    Power

    KW

    110

    7.3



    rpm

    2200

    7.4

    air cylinder

    cm3

    6

    Other

    8.1

    Driving control method



     torque converter

    Jib

    9.1

    Weight

    Kg

    7800

    9.2

    Control



    Remote control

    9.3

    Outrigger Control



    Manual landing valve control

    9.4

    main Outrigger Longitudinal span

    mm

    4319

    9.5

      Distance between extending rear   outrigger to center of swing platform

    mm

    1582

    9.6

      Distance between the center of   additional extended  outrigger  at two sides

    mm

    2270

    9.7

    Max. lifting height

    mm

    16.5m

    9.8

    Additional leg extension/retraction speed (idle speed)

    S

    2/1.37

    9.9

    Main leg extension/retraction speed (idle speed)

    S

    3.8/2.7

    9.10

    Rear leg extension/retraction speed (idle speed)

    S

    2.6/2.2

    9.11

    Additional leg support / retraction speed (idle speed)

    S

    3.2/3.3

    9.12

    Main leg support / retraction speed (idle speed)

    S

    4.2/4.3

    9.13

    Rear leg support / retraction speed (idle speed)

    S

    3.4/3.6

    9.14

    Hook lifting/lowering (low speed)

    S

    145/98

    9.15

    Hook lifting/lowering (high speed)

    S

    53/36

    9.16

    Boom lifting/lowering (low speed)

    S

    74/53

    9.17

    Boom lifting/lowering (high speed)

    S

    34/23

    9.18

    Turn left/turn right (low speed)

    S

    126/126

    9.19

    Turn left/turn right (high speed)

    S

    51/55

    9.20

    Arm extension/retraction (low speed)

    S

    177/93

    9.21

    Arm extension /retraction (high speed)

    S

    56/33

    The crane is used to handle and lift cargo, it can be stretched out and drawed back, also folded.The 135-720 Forklift Crane Data installed on the front mast, the crane installed on the rear chassis.

    It is with integral chassis, there are five outriggers around the front and rear chassis, which guarantee the balance of the truck.

    Two independent hydraulic system, which support the different working device, shift valve control the combination and the distribution.

    The outriggers are easy to stretch out or drawled back, which can meet the different forklift or crane working condition.

    It is with pilot control, a single joy sticker can control the forklift 3-group action, which reduce the hydraulic control hose, increase the cab space.

    The remote control and wireless receiver module control the actions of the crane, including rotating, folding, lifting, stretching and drawing back.

    The operator can work at  any place of the crane, it is safe and reliable

    The rotating of the crane is controlled by double rotary motor, which make the rotating of the boom more smoothly, and improve the braking of the rotary motor.

    The radiator system is arranged at the right side,

    the hydraulic motor control the hydraulic fan and hydraulic oil cooler, which guarantee the heat balance of the truck.

    The cab is arranged at the left side, the highest point of the folded crane is lower than the forklift mast, which reducing the overall height of the truck.

    Forklift + Crane, One plus one.

    It is much less than two in the consideration of the procurement cost.

    Forklift + Crane, one plus one.

    You can save an operator wage cost,also the fuel and maintenance cost.

    One plus one is much less than two in the consideration of the user cost.

    One plus one is much more than two in the consideration of profit.

    SOCMA, A customer demand-oriented company

    Please expect the forklift models with bigger capacity and load moment to be launched by SOCMA in the near future,

    These models include:

    HNFC160-1000,HNFC200-1200,HNFC250-1600,HNFC320-1800,HNFC400-2000,HNFC450-2000,HNFC500-2000.

    Innovation makes SOCMA a great company !
