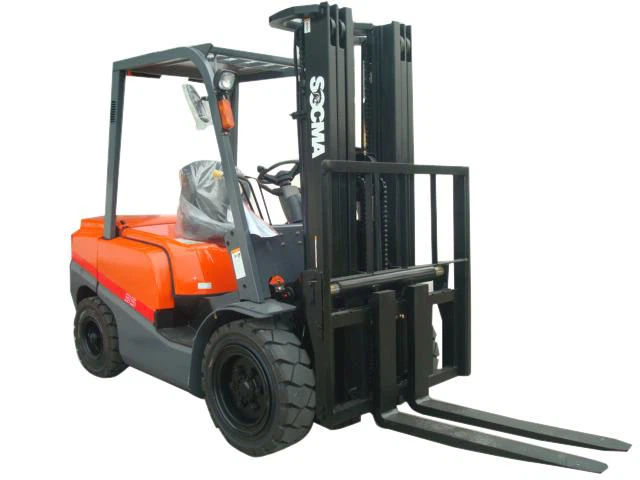

3.5 Tons Diesel Forklift

3.5 tons forklift designed and manufacture by SOCMA, with high quality, customized design available

Chat Now

    SOCMA 3.5-4.0T diesel forklift truck

    SOCMA 3.5-4.0T diesel forklift truck is well known for its good stability and flexible utility. It is usually used to lift and stack cargoes in the outdoors. Compared to gasoline engine, diesel engine possesses better power performance and low fuel charge. The engine is not easy to flame out even at low speed. It owns strong overload capacity and long-term working capacity.Our 3.5-4.0T diesel forklift trucks adopt DACHAI, YANMAR, MITSUBISHI and ISUZU engines with excellent hydraulic system. They have been proved to be economic, powerful, safe, durable and reliable.

    Parameters

    Optional Engine
    FG30,FG35: NISSAN K25

    Components
    3.5-4.0T diesel counterbalance forklift truck is mainly composed of engine, transmission, operating control device, working device (inside and outside door frame, fork mounting, pallet fork, lifting chain, roller, pulley and others), hydraulic system and electrical system.

    · Advantages of 3.5-4.0T Diesel Forklift Truck

    · It can be equipped with several diesel engines, which is convenient for customers to choose.

    · Built-in tilt cylinder makes the counterbalance forklift truck have much wider driving space.

    · Integrated operating system contributes to simple operation.

    · With unique overhead guard design, SOCMA 3.5-4.0T diesel forklift truck owns good visibility and is safer to drive.

    · Fully isolated driver compartment is beneficial to reduce vibration of truck body.

    · The driving cab of counterbalance forklift truck is designed based on ergonomics, which can reduce drivers' fatigue.

    · Our company has established over 30 domestic agencies and more than 10 foreign agencies, which greatly guarantees excellent service and technical support.

    · SOCMA provides one year warranty for the main components of 3.5-4.0T diesel forklift trucks. During the warranty period, the replaced material expense and labor cost are both free.



    Packaging and Transportation
    Shipping By Container.

    SOCMA is a professional manufacturer and supplier of 3.5-4.0T diesel forklift trucks in China. Our company belongs to state-level high-tech enterprise and is the engineering and technological research center of industrial forklift trucks. SOCMA is also engaged in producing 1.5-10T diesel forklift truck, 2-4.5T gasoline forklift truck and 1.5-4T electric forklift. Till now, we have established exclusive selling agencies in Australia, Russia, the United Kingdom and Northern Ireland, Korea and Iran. Our counterbalance forklift trucks have been exported to Southeast Asia, South America, Africa and Europe.

    Features    1Manufacturer

    SOCMA
    2Model
    Power shift T/M          FG35T
    Manual shift T/M       FG35C
    3Load capacity
    kg3500
    4Load center
    mm500
    5Power unit

    Gasoline
    6Operator type

    Driver/seat
    7Tire type  Front/rear
    Pnenumatic
    8Wheel  Front/rear
    2/2
    Dimension  9Max. lifting height
    mm3000
    10Free lift
    mm150
    11Fork size          L*W*Tmm1070*125*50
    12Tilt range                                Mast forward/backward             deg6/12
    13Overall length(without fork)
    mm2720
    14Total width
    mm1285
    15Mast height (fork lowering)
    mm2075
    16Overall height fork raised       With backrest                              mm4250
    17Height to head guard
    mm2140
    18Turning raduis(outside)
    mm2460
    19Front face of fork to front axle
    mm485
    20Min. right angle stacking aisle   without load length&clearence                     mm2940
    Performance   21Speed  Max Travelling         full/no load  km/h18/19.5
    22Lifting              full/no load     mm/s450/500
    23Lowering         full/no load               mm/s450/420
    24Max.drawbar pull                   Power shift T/M      full/no load                                       kg1800/1000
    Manual shift T/M       full/no load                                       kg1900/1000
    25Gradeability at 1.6km/h          Power shift T/M      full/no load                                       %17/20
    Manual shift T/M       full/no load                                       %17/20
    Weight            26Truck weight
    kg4610
    27Weight  distribution             Full  load              front/rear      kg7260/850
    28No  load               front/rear        kg1840/2770
    Frame           29Tires                                       Number front/rear 2/2
    30Model front axle 28x9-15-12PR
    31rear axle 6.50-10-10PR
    32Wheelbase
    mm1700
    33Tread                                               Front/rearmm1060/970
    34Ground clearence                  At lowest point(mast)                 mm120
    Frame mm135
    35Brake                                            Service  brake
    Hydraulic-foot peda
    Parking brake
    Mechanical-hand lever
    Engine   36Battery                                          Voltage/capacity V/AH12/60
    37Engine                                          Model
    Nissan K25
    Rated power PS(kw/rpm)51/2300(37.4/2300)
    Rated torque kg-m    max.(N.m)18/1600(177/1600)
    Number of cylinders
    4
    Placement L2.488
    Fuel tank capacityL70
    38Transmission                              Speed forward/backward           Power shift T/M               Manual shift T/M              1-1 power shift T/M                                                                                                                                 2-2 power shift T/M
    39Operating pressure                    Hydraulic system pressure           kg/cm²180
